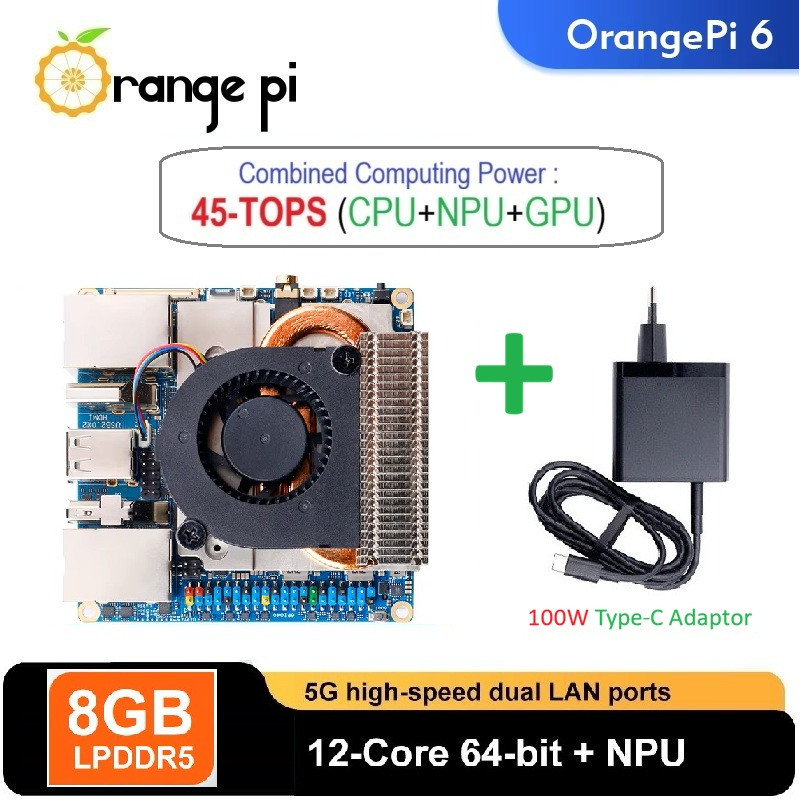

Orange Pi 6 - 8GB RAM 12-Core CPU 45-TOPS AI Computing Power Integrated Cooler Fan 100W Power Supply

Name: Orange Pi 6 - 8GB RAM 12-Core CPU 45-TOPS AI Computing Power Integrated Cooler Fan 100W Power Supply
Brand: badank Electronic
SKU: 15723852964
Price: 7049960 IDR
Availability: InStock

Rp7,268,000

Rp7,049,960 Save 3%

Tax excluded

Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

Description
Product Details

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

ORANGE PI 6 (RAM 8GB)

* 12-Core CPU
* 45-TOPS AI Computing Power (CPU+NPU+GPU)
* Integrated Cooling Fan
* Included Power Supply 20V 100W

Note :
* MODULE M.2 WIFI/BT TIDAK TERMASUK DALAM PAKET BAWAAN PRODUK
* JIKA MENGINGINKAN KONEKTIFITAS WIFI/BT, MAKA HARUS MEMASANG MODULE M.2 TERSEBUT

HARDWARE PARAMETERS :

CPU : CIX CD8180, 12-core 64-bit processor
NPU : 28.8 TOPS
GPU : Integrated graphics processor, supports hardware ray tracing
Total AI Compute : 45 TOPS (CPU+NPU+GPU)
RAM : LPDDR5, 128bit, 8GB/16GB/24GB
Storage Expansion :
--SPI FLASH: 64Mbit
--NVMe SSD (PCIe 4.0 x4, M.2 KEY-M 2280) x2
--TF card slot
Wi-Fi / Bluetooth : M.2 KEY-E socket (module not included)
Ethernet : Dual 2.5GbE Ethernet
USB :
--USB 3.0 x2, USB 2.0 x2
--Full-function Type-C 3.0 x2
--Reserved USB 2.0 9-pin header
Display Interfaces :
--1 x DP 1.4 (4K@120Hz)
--2 x Type-C DP
--1 x HDMI 2.0 (4K@60Hz, bridge chip PS185)
--1 x eDP (4K@60Hz)
Camera : 2 x 4-lane MIPI CSI camera interfaces
Audio : 3.5mm headphone jack (audio in/out), dual speaker headers, 1 x analog microphone
Power : Dual Type-C PD 20V, compatible with 65W/100W
Expansion Interface : 40Pin (GPIO, UART, I2C, SPI, PWM)
LEDs : Power LED, system status LED
Buttons : Power button, reset button, BOOT button
Fan Header : 1 x PWM fan header
Reserved Interfaces : RTC header, UART debug serial port
Operating Systems : OpenHarmony, Debian, Ubuntu, Android, Windows, ROS2
Dimensions : 90 x 90 mm
