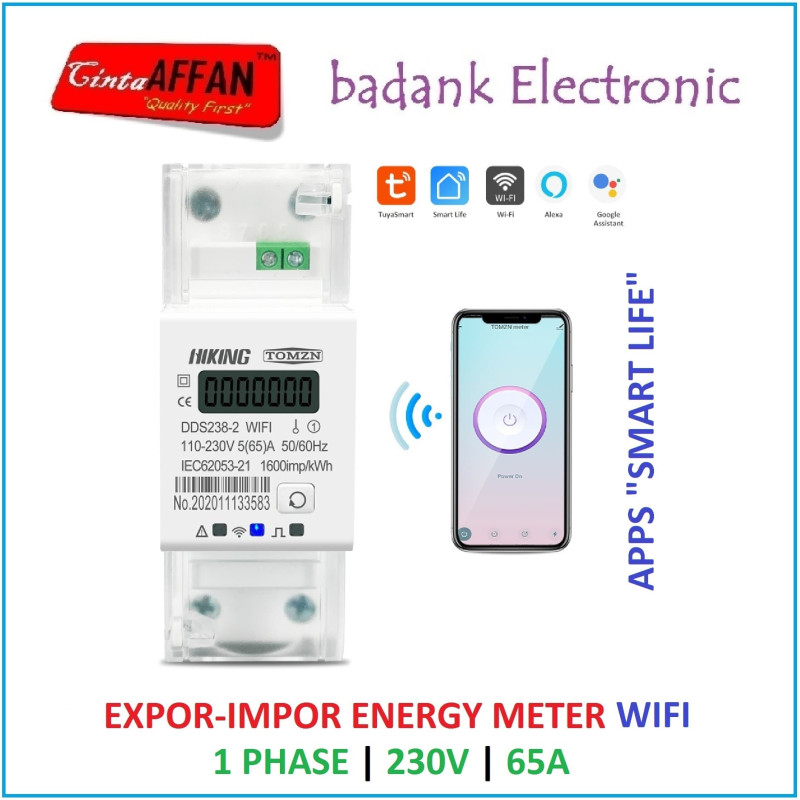

DDS238-2 WIFI Energy kWh Meter 1 PHASE 65A - Expor Impor Metering PLTS

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

NOTE :
ALAT INI ADALAH ENERGY (kWh) METER BIDIRECTIONAL (EXPOR-IMPOR) BUKAN ALAT UNTUK MENCEGAH LISTRIK EXPOR KE PLN

Energy / kWh meter ini cocok untuk:
-PLTS rumah, untuk mengetahui kWh listrik yg di export ke PLN maupun yg di import dari PLN
-Keperluan lainnya

Dengan fitur komunikasi:
- WIFI, Apps TUYA atau SMART LIFE

DESCRIPTION:
1. Remote Control ON/OFF by Tuya APP or Smart Life APP at anytime from anywhere
2. Total active energy kWh measure
3. APP can read kWh , R.M.S current , voltage , active power
4. Timer control function
5. Delay time cut off function
6. LCD display, Real-time display of Voltage, Current, Active Power, reactive Power, power factory , frequence, total Energy kWh
7. Power Supply: 90-250V AC 50/60Hz
8. Rated Current: 65A
9. Pulse Frequency: 1600imp/kWh
10. 35mm Din Rail install
11. can use same TUYA APP , compatible with other TUYA product such WIFI socket , led ,fans and so on
12. Active energy accurate is class 1 , IEC62053-21

Push the button last more than 10s , the WIFI led will flash quickly , then use APP to operation

Note:
This meter Only supports 2.4G Wireless Network, NOT for 5G

TECHNICAL SPECIFICATION
Meter type : DDS238-2
WIFI Rate frequency : 50 or 60 Hz
Rated current : 5(65)A
Rated voltage : 120V / 220V / 230V /240V
Limits voltage range : 100 - 270V kWh
Accuracy : Class 1
R.M.S accuracy : Class 0.5
Current circuit : 1.5VA
Voltage circuit : 2W/8VA
Starting current: 0.004Ib (20mA)
LCD : 999999.9kWh
WIFI : 802.11b/g/n, only support 2.4GHz network, not support 5GHz network
Operation temperature: -25 ~ 70degC

INSTALLATION MOUNTING DIN RAIL 35mm
