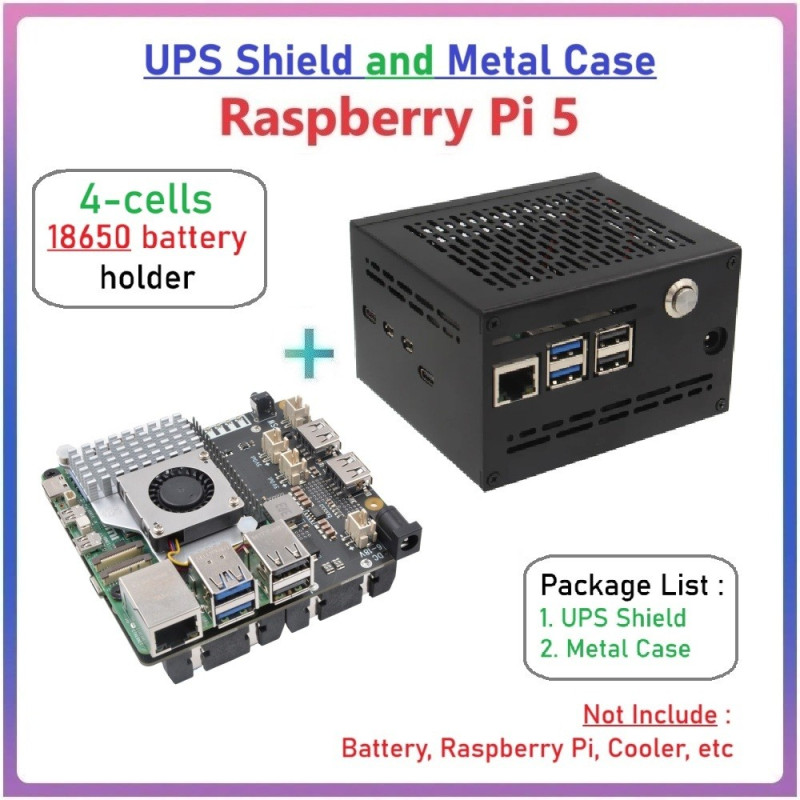

SUPTRONICS X1202 UPS Shield 5.1V 5A 4-Cells 18650 Batt Holder with METAL CASE for Raspberry Pi 5

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

UPS SHIELD + METAL CASE
For Raspberry Pi 5
4-Cells Battery 18650 Holder

Notes :
1. Saat menggunakan UPS HAT ini, seluruh kebutuhan power board Raspberry akan disupply oleh UPS HAT ini.
2. Pada penggunaan dekstop wayland "WAYFIRE", akan MUNCUL notifikasi low voltage (hanya saat awal booting saja), namun itu tidak mengganggu performa maupun fungsi peripherals pada board Raspberry.
3. Pada penggunaan dekstop wayland "X11", TIDAK MUNCUL notifikasi low voltage.

*** ITEM 2 PADA NOTES DIATAS TIDAK DAPAT DIJADIKAN ALASAN UNTUK RETUR/REFUND ***
*** MEMBELI = MEMAHAMI DAN MENYETUJUI ***

PACKAGE LIST :
1. UPS Shield with 4-cells battery holder
2. Metal Case

NOT INLUDED :
-- Battery
-- Board Raspberry Pi 5
-- Cooler
-- etc (other than mentioned in the above package list)

Compatible for :
-- Raspberry Pi 5 (RAM 2GB, 4GB, 8GB, 16GB)
-- Official/Third Party Active Cooler
-- Official/Third Party M.2 HAT
-- NVME top Shield

NOT Compatible :
--- NVME Base/Bottom Board

FEATURES :
Provides continuous operation for up to 10 hours (duration depends on battery type and applications)

SPECIFICATIONS :
Power input :
--- 6-18Vdc,(12Vdc 3A power adapter recommended)
--- 5Vdc 5A via USB Type-C
UPS output : 5.1V ±5% Max 5A
Battery charging current : Max 2.3-3.2A
Terminal Battery Voltage : 4.23V
Battery Recharge Threshold : 4.1V
Ports & Connectors :
--- DC power jack - 5.5x2.1mm
--- 2-cell 18650 battery socket x2
--- 5V Power output connector x2 - XH2.54 2-pin
--- USB2.0 type-A power output socket x2
--- External power button connector x1 - XH2.54-2P
PCB Size : 97.4mm x 85mm

NOTES :
--- Do not apply power to your Raspberry Pi via the Type-C USB socket.
--- Do not use 18650 battery with built-in protection circuit.
