HA02-6S 72V Battery Equalizer Accu Balancer Penyeimbang Tegangan Aki
Rp1,111,000
Rp1,077,670
Save 3%
Tax excluded
SKU: 3477525087
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
DAPAT DIGUNAKAN UNTUK SEMUA JENIS BATTERY
(dengan cell-voltage kurang dari 18V)

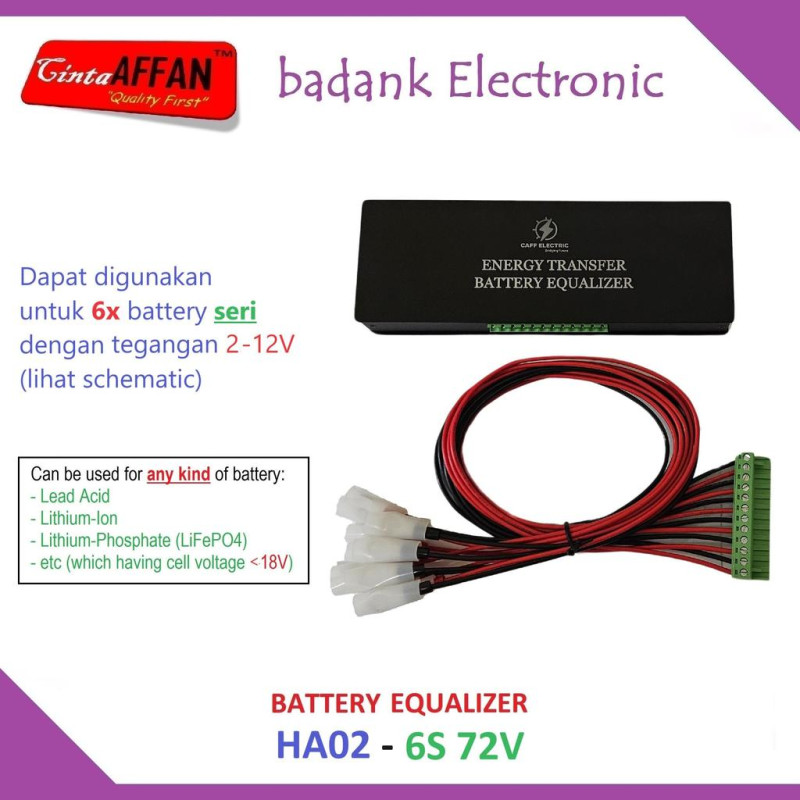

HA02-6S 72V
Battery Equalizer for 6 X (2-12V) battery
INSTALLATION
Connect it as the following order:
1. Red cable connect positive (+) pole. Black cable connect negative (-) pole
2. Connect the batteries as the pictures.
3. You can connect all (+) pole firstly, and then (-) pole to avoid short circuits.
4. AVOID SHORT-CIRCUIT, it can broke the balancer.
MAIN FEATURES:
--For 6*2-12V Batteries
--Battery protector, extend battery lifetime
--Active energy transfer equalizer
--Compatible with all batteries, No battery type limited
--Fast balance speed and low consumption
--No need of external power supply
--Free maintenance;
--Reverse polarity protection, safe and reliable.
--IP67, waterproof and moisture-proof;
--Separate terminals, easy installation.
--CE, RoHS certification
TECHNICAL DATA:
Battery nominal voltage : 6*(2-12V)
Battery max voltage : 18V on each cell
Optimizing current : 0-10A (balance current is based one batteries voltage difference)
Balance status : keep on working in charging/discharging/free status when there is 10mv voltage difference
Dimensions : 190*66*23 mm
Protection : Reverse polarity protection
Low Voltage Disconnect : 1.8V
