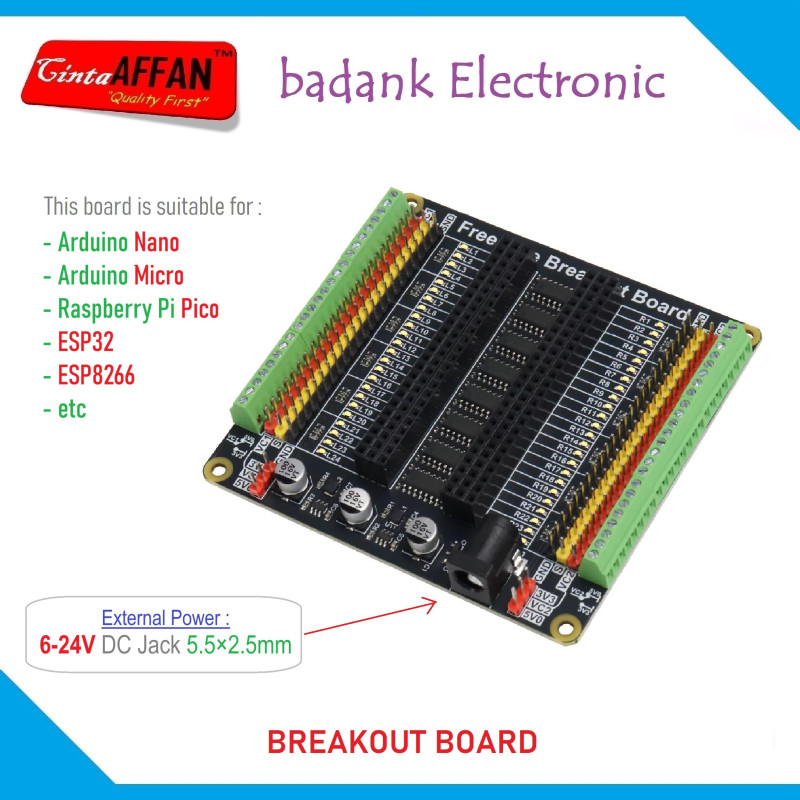

FREENOVE Universal Breakout Board Compatible for Arduino Nano / Micro Raspberry Pi Pico ESP32 and ESP8266

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

Brand : FREENOVE

UNIVERSAL BREAKOUT BOARD

Compatible for :
- Raspberry Pi PICO Family (with Header)
- Arduino Nano / Micro (with Header)
- ESP32 (with Header)
- ESP8266 (with Header)
- Etc

External Power Supply (if needed) : 6-24V, using DC Jack size 5.5x2.5mm

Overview:
This breakout board can help you wire and know the status of the GPIO.
Just plug your main board into this breakout board to complete the installation.

Compatible Models:
* Any board (5 V or 3.3 V) with a pin spacing of 0.1 inch (2.54 mm), width 0.6, 0.7, 0.8, 0.9, 1.0 inch and length up to 2.3 inch (24 pin).
* Compatible with Arduino Nano / Micro, Raspberry Pi Pico 1 / 2 (W), ESP32, etc.

Main Features:
* Power supply
Provide two sets of switchable 5 V or 3.3 V power outputs, up to 3 A if connected to an external power supply.
(Need to configure jumper caps, please refer to the tutorial.)
* GPIO status LED
LED on if GPIO outputs / inputs high level, LED off if GPIO outputs / inputs low level.
* Independent LED
The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected.
* Terminal block and header
Connect to all pins of the main board, 2.54 mm (0.1 inch) pitch.

Package Includes:
1 x Breakout board
1 x Slotted screwdriver
5 x Jumper cap (red, short)
5 x Jumper cap (red, long)
5 x Jumper cap (black, short)
5 x Jumper cap (black, long)

Not Includes :
Micro-Controller Board
