NVIDIA Jetson AGX Orin 32GB - H01 Kit 200-TOPS AI Performance
search
  • NVIDIA Jetson AGX Orin 32GB - H01 Kit 200-TOPS AI Performance
  • NVIDIA Jetson AGX Orin 32GB - H01 Kit 200-TOPS AI Performance
  • NVIDIA Jetson AGX Orin 32GB - H01 Kit 200-TOPS AI Performance
  • NVIDIA Jetson AGX Orin 32GB - H01 Kit 200-TOPS AI Performance
  • NVIDIA Jetson AGX Orin 32GB - H01 Kit 200-TOPS AI Performance
  • NVIDIA Jetson AGX Orin 32GB - H01 Kit 200-TOPS AI Performance

NVIDIA Jetson AGX Orin 32GB - H01 Kit 200-TOPS AI Performance

Rp35,500,000
Rp34,435,000 Save 3%
Tax excluded
Quantity

SKU: 3597939823
  Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

  Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

  Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

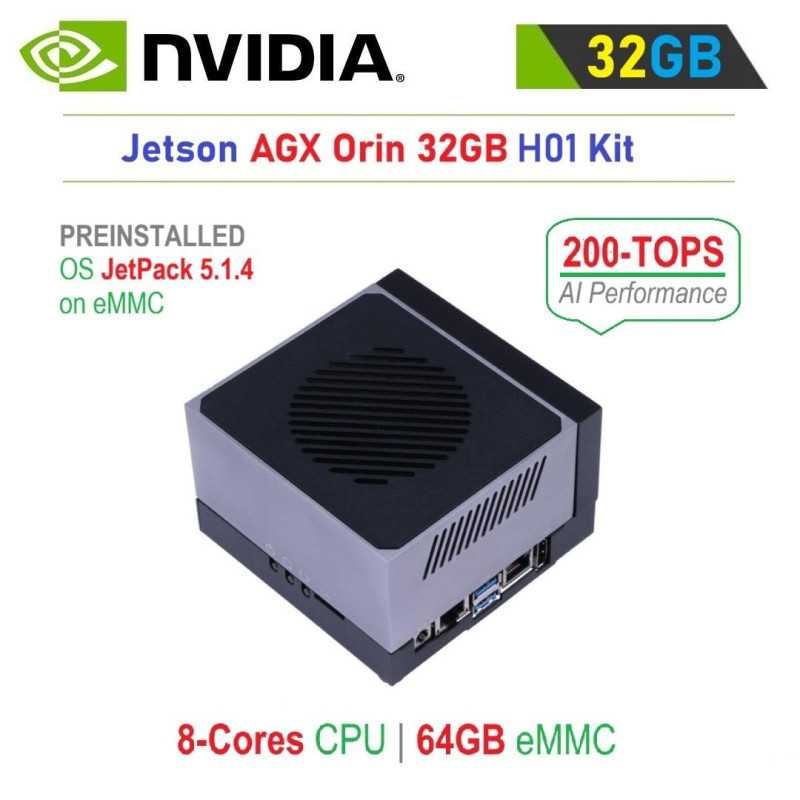

NVIDIA JETSON AGX ORIN 32GB - H01 KIT

200-TOPS AI Performance

Jetson AGX Orin 32GB H01 Kit is built with Jetson AGX Orin 32GB Module, offering 200 TOPs AI performance. Provide rich interfaces including PCIe X16, GbE, 10GbE, 3* USB 3.2, HDMI 2.1, M.2 Key M, M.2 Key E, 16 lane MIPI CSI-2, 40Pin header. The kit is pre-installed with JetPack 5.1.2.

***Harga bisa berubah sewaktu-waktu***
***Dengan segala hormat, box produk ini kami buka untuk pemeriksaan kondisi fisik barang dan kami tempel STICKER SEGEL KHUSUS sebagai penanda barang dari toko kami***




Technical Specifications :

AI Performance : 200 TOPS
GPU : 1792-core NVIDIA Ampere GPU with 56 Tensor Cores
CPU : 8-core NVIDIA Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
Memory : 32 GB 256-bit LPDDR5 204.8 GB/s
DL Accelerator : 2 x NVDLA v2.0
Vision Accelerator : 1 x PVA v2.0
Storage : 64GB eMMC 5.1
Video Encoder : 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264)
Video Decoder : 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264)
Display : 1* HDMI 2.1
Camera : 1* 16 lane MIPI CSI-2 connector
Networking : 1* GbE & 1* 10GbE
USB : 2x USB 3.2 Type-A (Integrated USB 2.0), 1x USB 3.2 Type-C (Integrated USB 2.0)
M.2 Key M : 1* M.2 Key M
M.2 Key E : 1* M.2 Key E (pre-installed WIFI+BT:BL-M8822CP1)
Fan : 1* 4-pin fan (5V PWM)
MicroSD card slot : 1 * microSD card slot
Audio Jack : 1* 3.5mm audio jack
RTC : 2-pin RTC
RS485 : 1* RS485(3P 1.5mm pitch)
RS232 : 1* RS232(3P 1.5mm pitch)
Others : 40-pin header, 1* SPI Bus(+3.3V Level), 6* GPIO(+3.3V Level), 1x CAN, Force Recovery, Reset and Power ON/ OFF buttons, 12V/2A 2-pin power output
Power Supply : 9~20V DC Input @ 8A
Mechanical : 107mm x 106.4mm x 70.5mm
Operating Temperature : -25 DegC to +70 DegC
