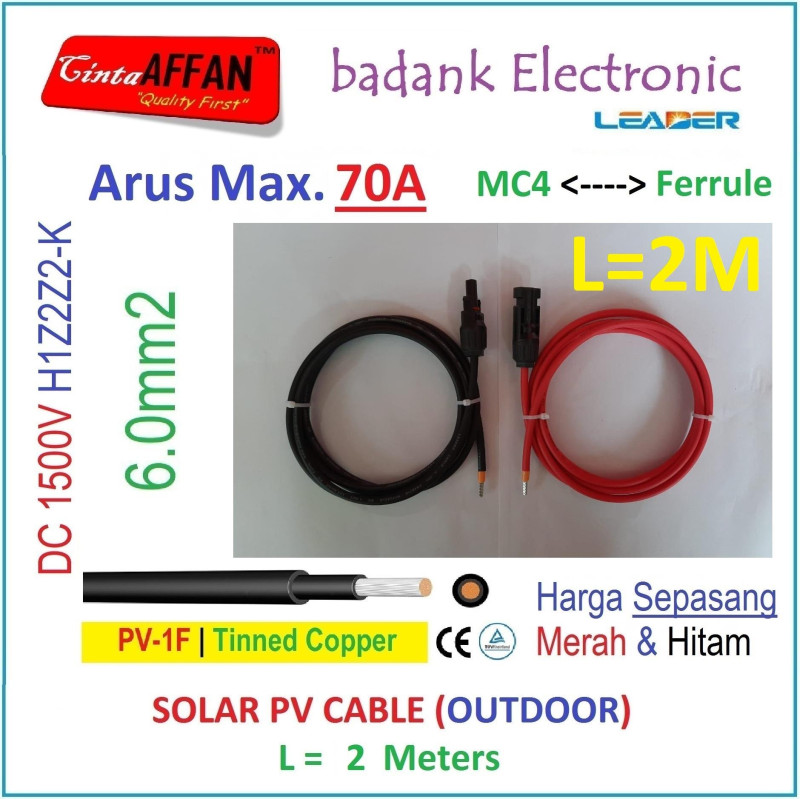

MC4 --- Ferrule PV Cable 1500V H1Z2Z2-K 6mm2 Tinned copper L2M
search
  • MC4 --- Ferrule PV Cable 1500V H1Z2Z2-K 6mm2 Tinned copper L2M
  • MC4 --- Ferrule PV Cable 1500V H1Z2Z2-K 6mm2 Tinned copper L2M
  • MC4 --- Ferrule PV Cable 1500V H1Z2Z2-K 6mm2 Tinned copper L2M

MC4 --- Ferrule PV Cable 1500V H1Z2Z2-K 6mm2 Tinned copper L2M

Rp116,000
Rp112,520 Save 3%
Tax excluded
Quantity

SKU: 1250238522
  Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

  Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

  Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

################################## READY STOCK, SILAHKAN LANGSUNG ORDER ################################## KABEL PANEL SURYA OUTDOOR H1Z2Z2-K / PV-1F Spesifikasi: - Jenis Kabel : H1Z2Z2-K - Kabel ukuran 6 mm2 - Warna kabel Merah dan Hitam (Sepasang) - Arus maksimum 70A - Dengan konektor MC4 dan ferrule lonjong (terpasang pada ujung ujung kabel) - Panjang kabel : 2 meter Note: - Harga yg tertera adalah sapasang kabel merah dan hitam - Produk sebagaimana terlihat pada gambar Aplikasi: - Sambungan antara Panel Surya (MC4) ke MCB DC - Sambungan antara Panel Surya (MC4) ke SCC / Solar Controller - Sambungan antara Panel Surya (MC4) ke Inverter Features: - Double-insulated,Insulation cross-linked Polyolefin - Stable conduction and reduced maintenance costs - Anticipate service life -25 years outdoors - RoHS and CE amp; TV(EN50618 H1Z2Z2-K) Spesifikasi: - Standard : EN50618 - Construction : H1Z2Z2-K 6mm2 - Conductor Size : 6mm2 - Conductor Material : Tinned copper wire - Insulation Material : XLPO - Voltage Rating : DC1500V - Temperature Rating : -40~90 - Dielectric Strength : AC-6.5kV/5min - Spark Test : AC-10kV/In the air - Conductor resistance : 8.65KM Max at20 - Weathering/UV-resistance : 720hNo cracking - Thermal endurance properties : 25 Years - Ozone resistance : 252*24h No cracking - Cold bend test : -402*16h No cracking - Cold impact test : -40*16h/1000g100mm No cracking - Flame test : IEC 60332

1250238522
