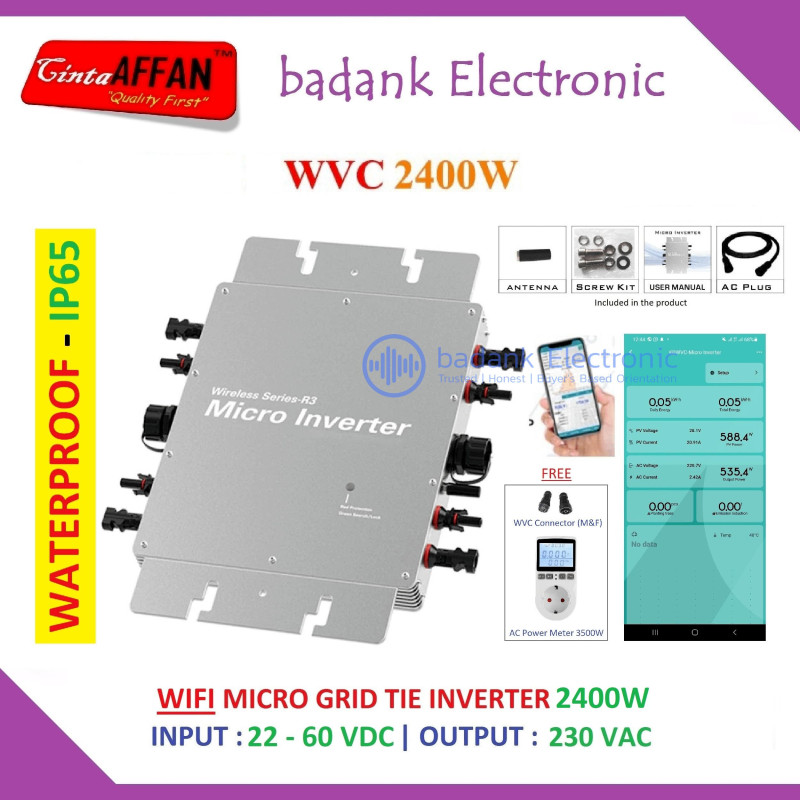

WVC-2400-Life (WIFI) Micro Grid Tie Inverter GTI 2400W PV 22-60V

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

WIFI Micro Grid Tie Inverter 2400W
---MPPT Input Range 22-60VDC
---ON GRID TIE INVERTER
---230VAC Output, Pure Sine Wave

BONUS :
* AC Power Meter 3500W
* WVC AC Connector (M & F)

FITUR APLIAKSI:
1. Monitoring PV Input (Voltage, Current, Power)
2. Monitoring Inverter Output (Voltage, Current, Power)
3. Control Inverter ON/OFF
4. Monitoring kWh, trending
5. Scheduling Inverter ON/OFF
6. Output Inverter Limiter (% of Inverter Capacity)
7. dll

PANDUAN INSTALASI:
1. Pastikan sambungan sisi DC dan sisi AC terpasang semua sesuai schematic.
2. Pastikan polarity (+) dan (-) dari PV sudah benar (tidak terbalik).
3. Pastikan tegangan PV masuk dalam range teganan input inverter (tidak kurang dan tidak lebih)

---

==

SPESIFIKASI

Model : WVC-2400
Recommended Panels : 4*750Wp
Maximum Panels : 3000Wp
Output Voltage Mode : 120/230V (Auto Selection)

INPUT DATA (DC)
--- PV Open Circuit Voltage (Voc) : 30-60VDC
--- Operating Voltage Range : 22-60VDC
--- Short-Circuit Current : 4*28A
--- Maximum Working Current : 4*23A

OUTPUT DATA (AC)
--- Single Phase Grid Type : 230V
--- Output Peak Power : 2600W
--- Output Rated Power : 2400W
--- Output Current : 10.5A
--- AC Voltage Range : 180-280VAC
--- AC Frequency Range : 48-61Hz
--- Power Factor : gt; 95%
--- Static MPPT Efficiency : 99.5%
--- Max Output Efficiency : 95%
--- No. of Branch Connections : 6pcs (single)

MECHANICAL & ENV DATA
--- Temperature Range : -40degC to +65degC
--- Size (L x W x H) : 370 x 300 x 41.6mm
--- Waterproof Grade : IP65
--- Heat Dissipation : Self-Cooling
--- Communication Mode : WIFI 2.4GHz (5GHz not supported)
--- Power Transmission Mode : Reverse Transmission, Load Priority
--- Monitoring System : APP ("Cloud Intelligence")

---

==
