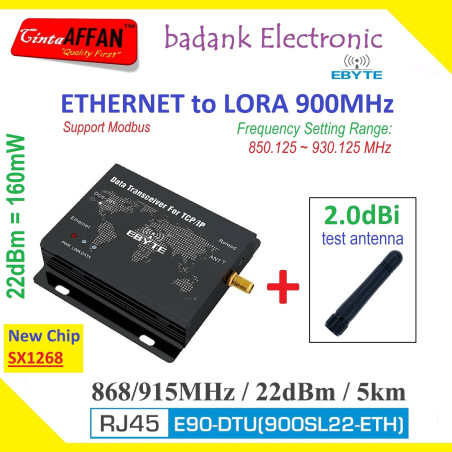

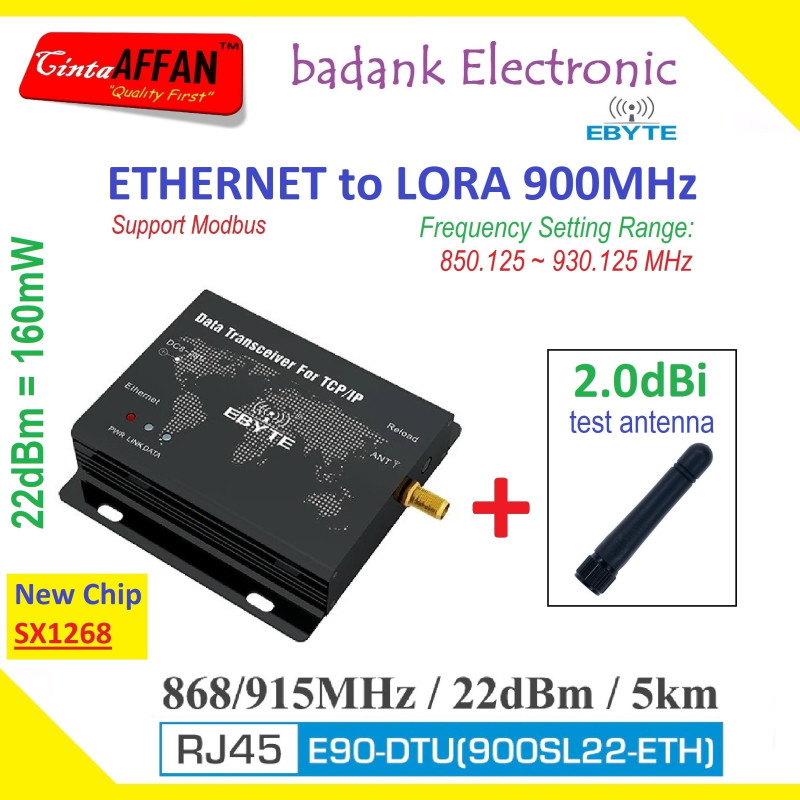

EBYTE E90-DTU (900SL22-ETH) MODBUS TCP/IP to LORA 900MHz with Antenna

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

EBYTE E90-DTU (900SL22-ETH)

Support MODBUS TCP/IP to LORA 900MHz Converter, dengan TEST Antenna 2.0dBi

Note: Legal Frequency LORA untuk wilayah Indonesia adalah pada range 920 - 922MHz

---

FEATURES:
LoRa 22dBm SX1268 Ethernet Wireless Modem Transparent Transmission Module RF

PARAMETERS:
Working frequency : 850.125~930.125 MHz (Default: 868.125MHz)
Transmitting power : 22 dBm (About 160mW)
Air data rate : 0.3k~62.5kbps (Configured by user)
Test distance : 5000 meter (In open and clear air, antenna gain 5dBi, at height of 2.5 m, air data rate 2.4 kbps)

HARDWARE PARAMETERS:
Size : 84 * 82 * 25 mm
Antenna type : SMA-K
Communication interface : Ethernet
Transmission length : 240 Byte (Can be set as 32/64/128/240bytes each packet)
Receiving length : 1000 Byte

ELECTRONIC PARAMETERS:
Power supply : 8V - 28V (It is recommended to use 12V or 24V)
Transmitting current : (22.0dBm / 160mW)
Stand-by current : 70.4mA
Operating temperature : -40 to +85
Operating humidity : 10 to 90% Storage temperature : -40 to +125

---
