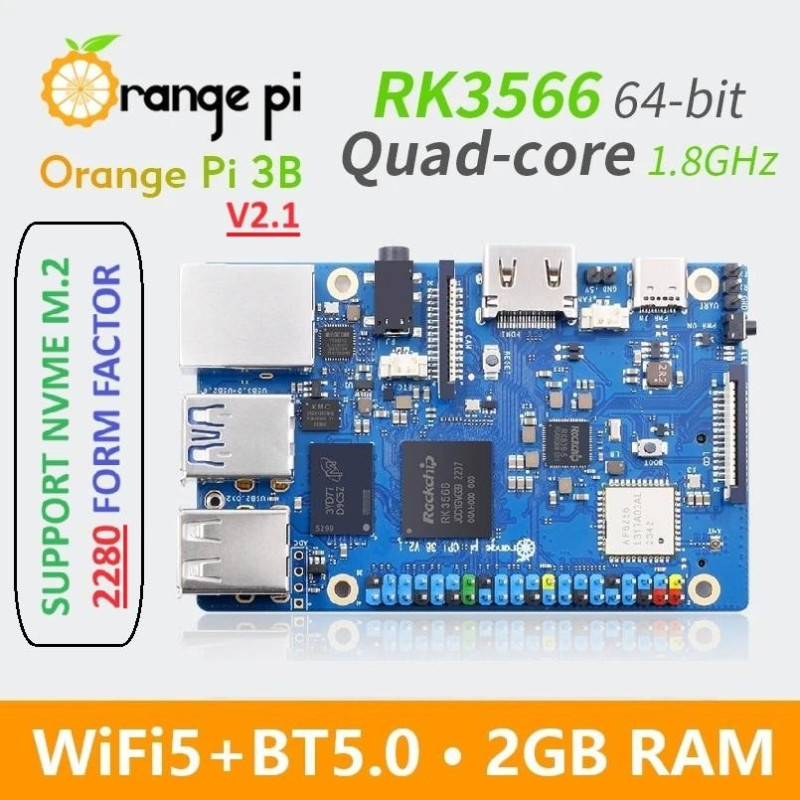

Orange Pi 3B - 2GB RAM Quad-core 64-bit Cortex-A55 Processor up to 1.8GHz

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

Orange Pi 3B (2GB RAM) - Version V2.1

Compatible for onboard (backside) installation of SSD NVME M.2 2280 Form Factor

Note : Board Version V2.1 tidak cocok menggunakan casing versi sebelumnya (V1.1)

SUPPORTED OS (Operating System) :

OFFICIAL IMAGES :
- Orange Pi OS (Arch)
- Orange Pi OS (OH)
- Ubuntu
- Debian
- Android
- OpenWRT

THIRD PARTY IMAGE :
- Raspberry Pi OS

(OS Image MUST be downloaded from Orange Pi website).

SPEC:
SoC : RockchipRK3566
CPU : Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz
GPU :
• ARM Mali G52 2EE graphics processor
• Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 • Embedded high performance 2D acceleration hardware
NPU :
• Integrated RKNN NPU AI accelerator with 0.8Tops@INT8 performance
• Support oneclick conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models
VPU :
• 4K@60fps H.265/H.264/VP9 video decoding
• 1080P@100fps H.265 video encoding
• 1080P@60fps H.264 video encoding
PMU : RockChip RK809-5
RAM : 2GB/4GB/8GB (LPDDR4/4x)
Memory :
• Support eMMC module:16GB/32GB/64GB/128GB/256GB
• SPI Flash: 16MB/32MB
• M.2 M-KEY slot: PCIe2.0 SSD NVME M.2 2280 Form Factor
• Micro SD slot
Wi-Fi+BT : Wi-Fi 5+BT 5.0，BLE (AP6256)
Ethernet : 10/100/1000Mbps Ethernet (On-board PHY chip: YT8531C-CA)
Video Output :
• 1* HDMI TX 2.0 , up to 4K@60fps
• 1*MIPI DSI 2 lane
• eDP1.3 Camera : 1*MIPI CSI 2 lane camera interface
USB :
• 1*USB 2.0 support Device or HOST mode
• 1*USB 3.0 HOST
• 2*USB 2.0 HOST
Audio : 3.5mm headphone jack audio in/out
Button : 1* MaskROM key, 1* RESET key, 1 *POWER key
FAN : 2Pin 1.25mm size 5V fan connector
RTC : 2Pin 1.25mm size battery backup connector 40Pin : 40Pin functional expansion interface, supporting the following interface types: GPIO, UART, I2C, SPI, PWM
Power Source : Type-C 5V3A
