HA11 Bluetooth Battery Equalizer Balancer VRLA Lead Acid Panel Surya

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

DAPAT DIGUNAKAN UNTUK SEMUA JENIS BATTERY
(dengan cell-voltage

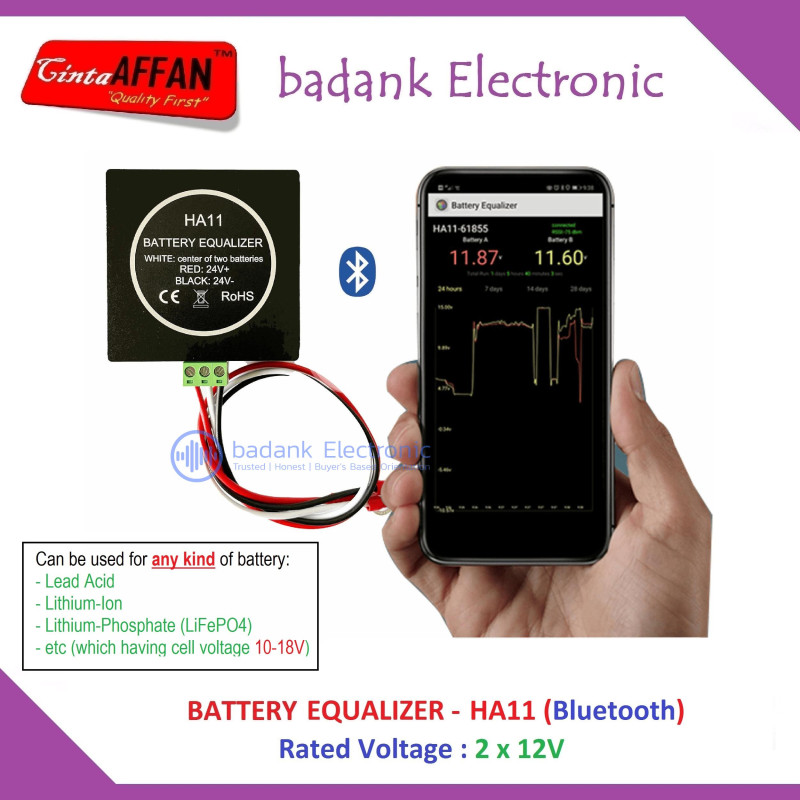

Battery Equalizer HA11 - with BLUETOOTH feature (android apps)

INSTALLATION
Connect it as the following order:
1. Red cable connect positive (+) pole. Black cable connect negative (-) pole
2. Connect the batteries as the pictures.
3. You can connect all (+) pole firstly, and then (-) pole to avoid short circuits.
4. AVOID SHORT-CIRCUIT, it can broke the balancer.

HA11 battery equalizer is for balancing 2*12V battery bank. Compatible with lead acid battery, lifepo4 battery, NiMH Battery, etc. It start work when there is 20mv voltage difference between batteries.
Battery equalizer can be used for 24V, 36V, 48V and any other N*12V battery system.
1 piece for 24V system;
2 pieces for 36V system;
3 pieces for 48V system;
... and so on

---

===

FEATURES:
--For 2*12V Batteries
--With Bluetooth
--Balance in series connected battery bank
--Extend battery lifetime
--Active Energy Transfer Equalizer
--Compatible with all batteries, No Battery type limited
--Low power consumption, High efficiency
--Small size, easy installation.
--CE, RoHS certification

SPEC:
--Model : HA11
--Battery Normal Voltage : 2*12V
--Battery max voltage : 18V on each cell
--Balance current : 0-5A(based on voltage difference)
--Quiescent current : lt;3mA
--Balance status : keep on working in charging/discharging/free status when there is 20mv voltage difference
--Dimensions : 68*68*25 mm
--Weight : 0.25kg
--Protection : Reverse polarity protection
--Low Voltage Disconnect : 10V
--Certification : CE, RoHS

---

===
