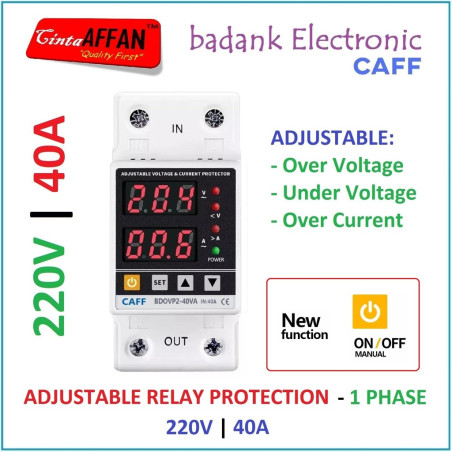

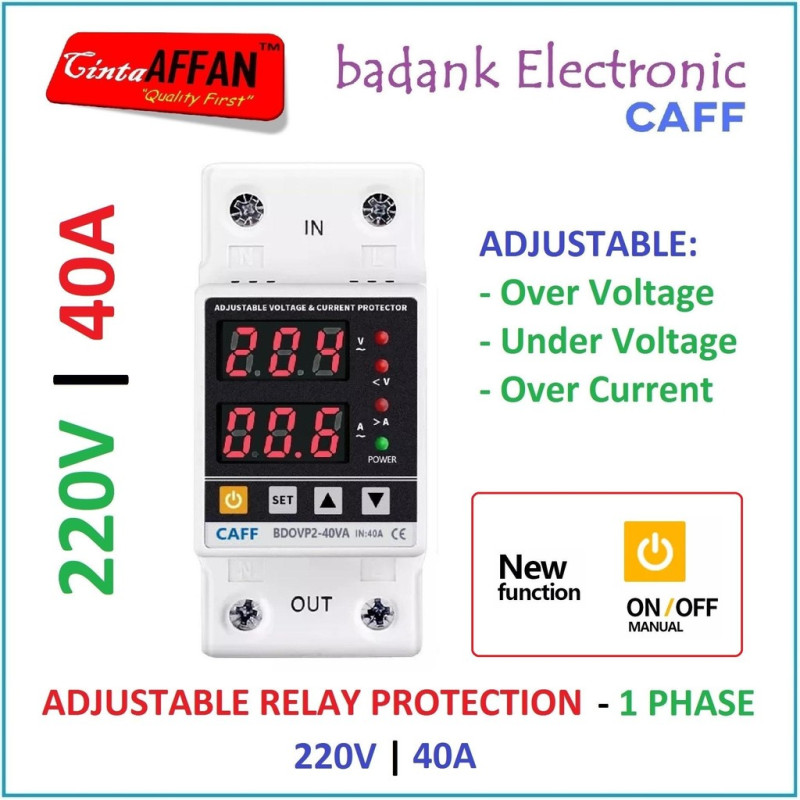

Protection Relay 220V 40A ADJUSTABLE Over Under VOLTAGE Over CURRENT

Name: Protection Relay 220V 40A ADJUSTABLE Over Under VOLTAGE Over CURRENT
Brand: badank Electronic
SKU: 949627707
Price: 150350 IDR
Availability: InStock

Rp155.000

Rp150.350 Hemat 3%

Termasuk pajak

Kebijakan Keamanan

Kami melindungi informasi pribadi Anda dengan langkah keamanan yang tepat untuk mencegah akses tanpa izin, penyalahgunaan, atau pengungkapan.

Kebijakan Pengiriman

Pesanan diproses dan dikirim secepat mungkin. Waktu pengiriman dapat berbeda tergantung tujuan, kurir, dan ketersediaan produk.

Kebijakan Pengembalian

Jika Anda menerima barang rusak, cacat, atau tidak sesuai, silakan hubungi kami segera. Pengembalian atau penukaran mengikuti ketentuan dan batas waktu yang berlaku.

Keterangan
Detail produk

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

CAFF VOLTAGE AND CURRENT PROTECTOR 40A

FUNCTIONS:
1. Over-voltage protection
2. Under-voltage protection
3. Over-current protection
4. Automatic recovery
5. Voltage display(voltage measurement)
6. Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable.
8. Restore factory settings: press the down button for more than 12s
9. Fault inquiry: Press the UP button from more than 12S

PRODUCT PARAMETERS:

Brand : CAFF
Model number: BDOVP2-40VA
Input Voltage: 140-300VAC 50/60Hz
Power-ON Delay time: 1-500s (default: 10s)
Over-voltage protection value: 230V~300V (default:270V)
Over-voltage recovery value: 225V-295V(default:265V)
Under-voltage protection value: 140V~210V (default: 170V)
Under-voltage recovery value: 145V-215V (default:175V)
Over-Current protection value: 1-40A (default 20A)
Over-Current recovery value: 0.5-39.5A
Recovery delay time : 1-500s (default : 30s)
Action time : 1-30s (default : 1s)
Continuous over current faults times : 1-20 times (default: OFF)
Power Consumption: < 2W
Electrical & Mechanical life : >100000 cycles
Dimension : 86 x 38 x 68mm
Wiring : Over (INPUT), down (OUTPUT)
