READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

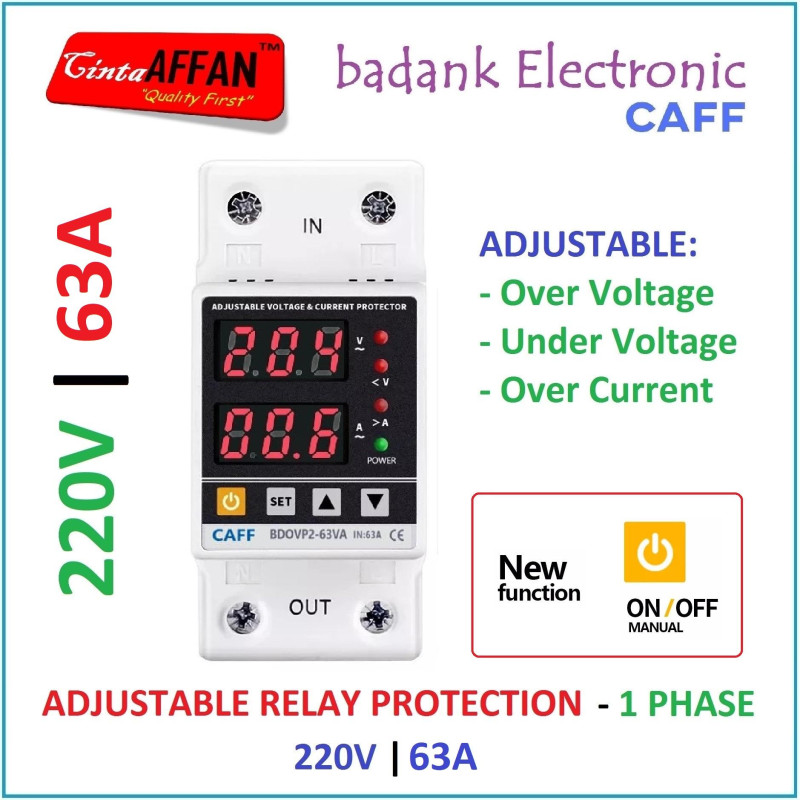

CAFF VOLTAGE AND CURRENT PROTECTOR 63A

FUNCTIONS:
1. Over-voltage protection
2. Under-voltage protection
3. Over-current protection
4. Automatic recovery
5. Voltage display(voltage measurement)
6. Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9. Fault inquiry: Press the UP button from more than 12S

PRODUCT PARAMETERS:
Brand : CAFF
Model number: BDOVP2-60VA
Input Voltage: 140-300VAC 50/60Hz
Power-ON Delay time: 1-500s (default: 10s)
Over-voltage protection value: 230V~300V (default:270V)
Over-voltage recovery value: 225V-295V(default:265V)
Under-voltage protection value: 140V~210V (default: 170V)
Under-voltage recovery value: 145V-215V (default:175V)
Over-Current protection value: 1-63A (default 40A)
Over-Current recovery value: 0.5-62.5A
Recovery delay time : 1-500s (default : 30s) Action time : 1-30s (default : 1s)
Continuous over current faults times : 1-20 times (default: OFF)
Power Consumption: < 2W
Electrical & Mechanical life : > 100000 cycles
Dimension : 86 x 38 x 68mm
Wiring : Over (INPUT), down (OUTPUT)
