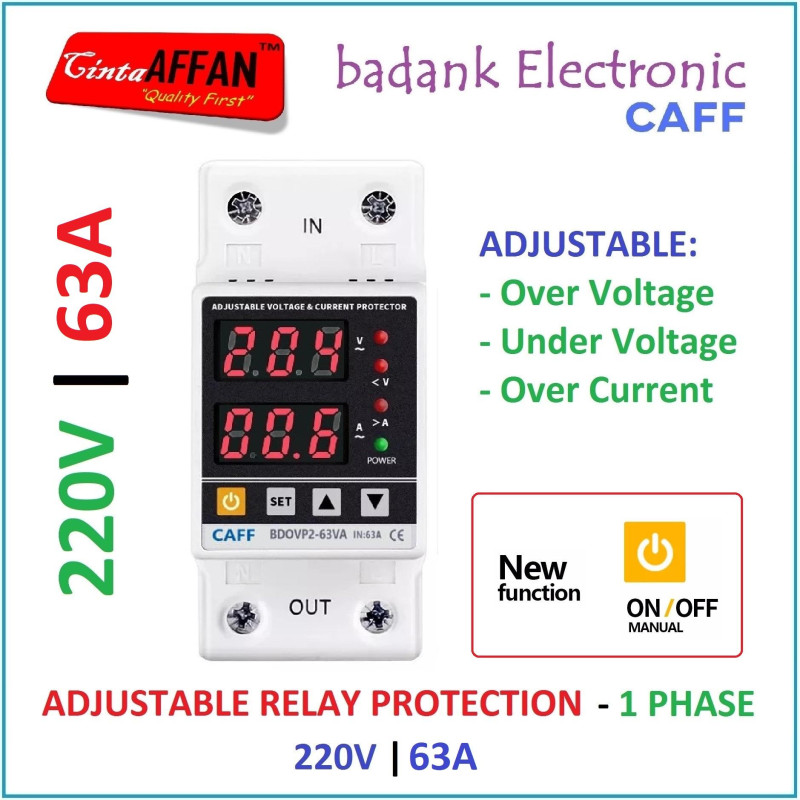

Protection Relay 220V 60A ADJUSTABLE Over Under VOLTAGE Over CURRENT

Name: Protection Relay 220V 60A ADJUSTABLE Over Under VOLTAGE Over CURRENT
Brand: badank Electronic
SKU: 949636637
Price: 179450 IDR
Availability: InStock

Rp185,000

Rp179,450 Save 3%

Tax excluded

Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

Description
Product Details

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

CAFF VOLTAGE AND CURRENT PROTECTOR 63A

FUNCTIONS:
1. Over-voltage protection
2. Under-voltage protection
3. Over-current protection
4. Automatic recovery
5. Voltage display(voltage measurement)
6. Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9. Fault inquiry: Press the UP button from more than 12S

PRODUCT PARAMETERS:
Brand : CAFF
Model number: BDOVP2-60VA
Input Voltage: 140-300VAC 50/60Hz
Power-ON Delay time: 1-500s (default: 10s)
Over-voltage protection value: 230V~300V (default:270V)
Over-voltage recovery value: 225V-295V(default:265V)
Under-voltage protection value: 140V~210V (default: 170V)
Under-voltage recovery value: 145V-215V (default:175V)
Over-Current protection value: 1-63A (default 40A)
Over-Current recovery value: 0.5-62.5A
Recovery delay time : 1-500s (default : 30s) Action time : 1-30s (default : 1s)
Continuous over current faults times : 1-20 times (default: OFF)
Power Consumption: < 2W
Electrical & Mechanical life : > 100000 cycles
Dimension : 86 x 38 x 68mm
Wiring : Over (INPUT), down (OUTPUT)
