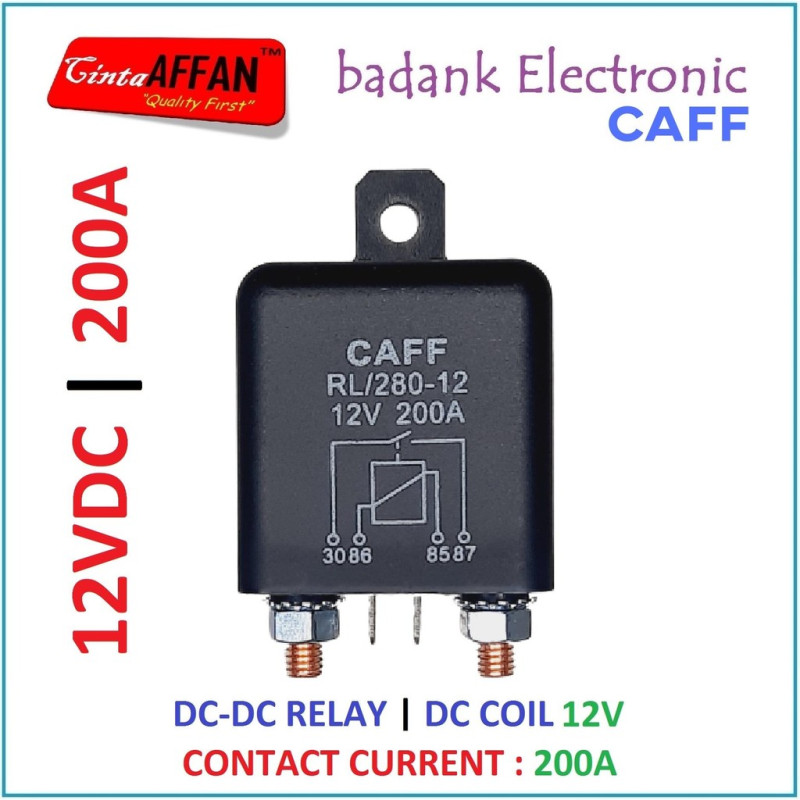

COIL 12V DC-DC Relay 200A Automotive Heavy Duty High Current Starting

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

CAFF DC-DC RELAY
Coil / Control Voltage : 12V

STARTING/SURGE LOAD (5ms):
---Max Contact Current : 200A (@12V Contact Voltage)
---Max Contact Load : 2400W

CONTINOUS LOAD :
---Max Contact Current : 80A (@12V Contact Voltage)
---Max Contact Load : 960W

Note:
The contact current capacity will reduced alongside with the increase of the contact voltage.

@12VDC Contact Voltage --> Max Contact Surge Current is 200A
@24VDC Contact Voltage --> Max Contact Surge Current is 100A
@48VDC Contact Voltage --> Max Contact Surge Current is 50A
@100VDC Contact Voltage --> Max Contact Surge Current is 24A
@200VDC Contact Voltage --> Max Contact Surge Current is 12A

=================

100% brand new and high quality

SPECIFICATION:

COIL SIDE:
---Nominal Voltage : 12V DC
---Pickup Voltage : 8V DC
---Dropout Voltage: 1.2V DC
---Maximum Voltage : 15.5V DC
---Current Consumption : 0.15A / 1.8W (Max)
---Coil Resistant : 316 Ohms

CONTACT SIDE:
---Max Current : 200A (starting/surge load) (@12V Contact Voltage)
---Max Current : 80A (continues load usage) (@12V Contact Voltage)
---Max Load : 2400W (starting/surge load, for 5ms)
---Max Load : 960W (continues load usage)

Contact Form: Normal Open
Operate Time: 15ms
Release Time: 10ms
Color: black
Size: 4.5*4.5*4.5cm
Temperature Range: -30 ~ +80 degrees Celsius

=================
