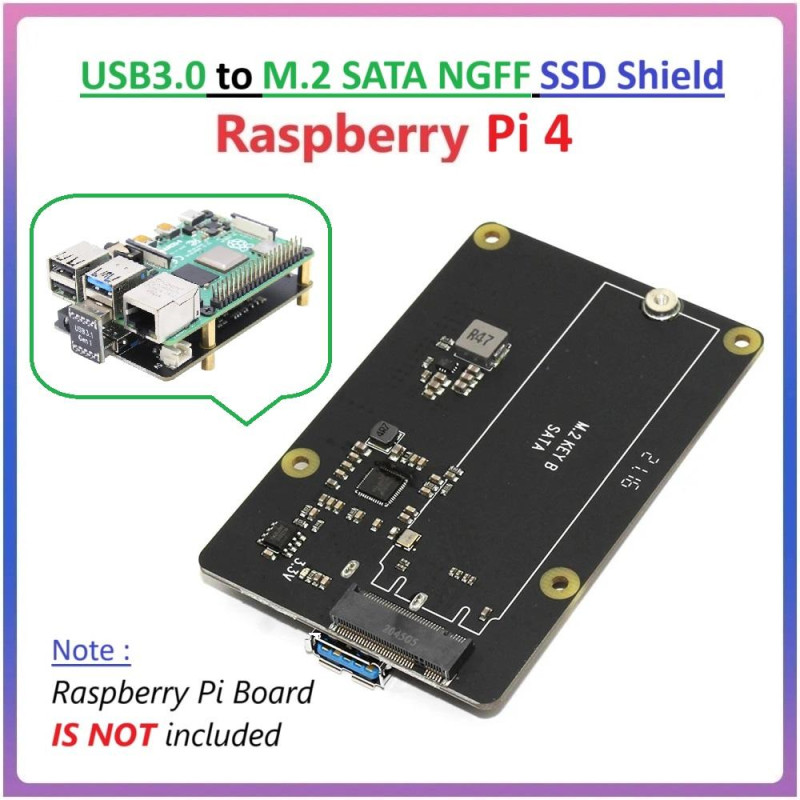

SUPTRONICS X862 USB3.0 to M.2 SATA NGFF SSD Shield for Raspberry Pi 4

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

USB3.0 to M.2 SATA NGFF SSD BOARD / SHIELD / HAT for Raspberry Pi 4

Compatible for :
-- SATA NGFF M.2 2280

TIDAK SESUAI UNTUK SSD M.2 NVME

---

OVERVIEW :

This is new updated X862 V2.0 version from X862 V1.0. We solve the EMC interference issue between Raspberry Pi 4 and USB3.0 device.

FEATURES :

--Ideal storage solution for Raspberry Pi 4 - M.2 NGFF SATA SSD Shield
--Supports up to 2TB M.2 NGFF SSD solid-state drive
--Only supports M.2 NGFF SSD 2280 length
--UASP supported for Raspberry Pi 4
--Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller
--Integrated high efficiency step-Down Converter, 3.3V max 4A to power the SSD
--USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4
--Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying (see note 2)
--LED blue indicator indicates drive status
--Specially-made USB3.1 jumper to connect with Raspberry Pi - no cabling required!
--Fully compatible with X735 for intelligent power management and cooling your Raspberry Pi
--Fully compatible with X715 for wide input voltage (6~60V) and intelligent power management
--Fully compatible with X765 for powering over Ethernet (POE, 5V 5A)
--Fully compatible with X728/X708 for uninterruptible power supply (18650 UPS, 5.1V 8A, smart power mgmt)

TECHNICAL SPECIFICATION :

Power supply: 5Vdc +/-5% , Powered via USB port of Raspberry Pi 4
Ports & Connectors：
--- USB socket - USB 3.0 type A x1
--- 67Pin M.2 connector P=0.5mm, H3.2mm, Key B x1
PCB Size : 87mm x 56mm

PACKING LIST :

1x X862 M.2 NGFF SATA SSD Shield
1x USB3.1 jumper
4x Screw M2.5 *6mm
4x Spacer M/F M2.5 *7+6mm
4x Spacer F/F M2.5 *9.5mm
1x Screw driver
1x Screw M2 *4mm

---
