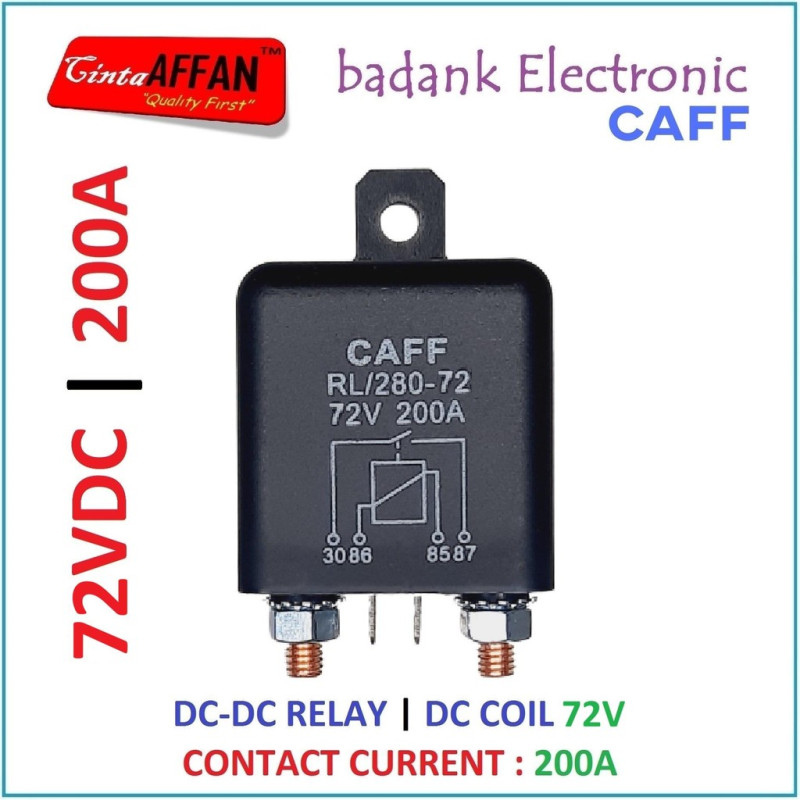

COIL 72V DC-DC Relay 200A Automotive Heavy Duty High Current Starting
search
  • COIL 72V DC-DC Relay 200A Automotive Heavy Duty High Current Starting
  • COIL 72V DC-DC Relay 200A Automotive Heavy Duty High Current Starting
  • COIL 72V DC-DC Relay 200A Automotive Heavy Duty High Current Starting
  • COIL 72V DC-DC Relay 200A Automotive Heavy Duty High Current Starting
  • COIL 72V DC-DC Relay 200A Automotive Heavy Duty High Current Starting

COIL 72V DC-DC Relay 200A Automotive Heavy Duty High Current Starting

Rp139.000
Rp134.830 Hemat 3%
Termasuk pajak
Jumlah

SKU: BD816590
  Kebijakan Keamanan

Kami melindungi informasi pribadi Anda dengan langkah keamanan yang tepat untuk mencegah akses tanpa izin, penyalahgunaan, atau pengungkapan.

  Kebijakan Pengiriman

Pesanan diproses dan dikirim secepat mungkin. Waktu pengiriman dapat berbeda tergantung tujuan, kurir, dan ketersediaan produk.

  Kebijakan Pengembalian

Jika Anda menerima barang rusak, cacat, atau tidak sesuai, silakan hubungi kami segera. Pengembalian atau penukaran mengikuti ketentuan dan batas waktu yang berlaku.

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

CAFF DC-DC RELAY
Coil / Control Voltage : 72V

STARTING/SURGE LOAD (5ms):
---Max Contact Current : 200A (@12V Contact Voltage)
---Max Contact Load : 2400W

CONTINOUS LOAD :
---Max Contact Current : 80A (@12V Contact Voltage)
---Max Contact Load : 960W

Note:
The contact current capacity will reduced alongside with the increase of the contact voltage.

@12VDC Contact Voltage --> Max Contact Surge Current is 200A
@24VDC Contact Voltage --> Max Contact Surge Current is 100A
@48VDC Contact Voltage --> Max Contact Surge Current is 50A
@100VDC Contact Voltage --> Max Contact Surge Current is 24A
@200VDC Contact Voltage --> Max Contact Surge Current is 12A

=================

100% brand new and high quality

SPECIFICATION:

COIL SIDE:
---Nominal Voltage : 72V DC
---Pickup Voltage : 48V DC
---Dropout Voltage: 8V DC
---Maximum Voltage : 90V DC
---Current Consumption : 0.15A / 9W (Max)
---Coil Resistant : 316 Ohms

CONTACT SIDE:
---Max Current : 200A (starting/surge load) (@12V Contact Voltage)
---Max Current : 80A (continues load usage) (@12V Contact Voltage)
---Max Load : 2400W (starting/surge load)
---Max Load : 960W (continues load usage)

Contact Form: Normal Open
Operate Time: 15ms
Release Time: 10ms
Color: black Size: 4.5*4.5*4.5cm
Temperature Range: -30 ~ +80 degrees Celsius

=================

BD816590
