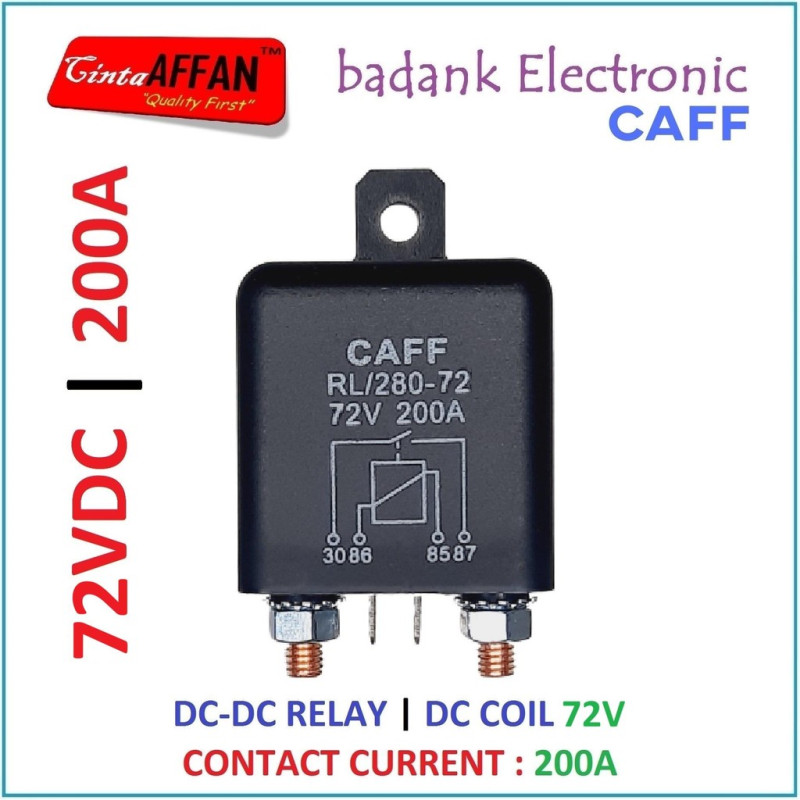

COIL 72V DC-DC Relay 200A Automotive Heavy Duty High Current Starting
Rp139,000
Rp134,830
Save 3%
Tax excluded
SKU: BD816590
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
CAFF DC-DC RELAY
Coil / Control Voltage : 72V
STARTING/SURGE LOAD (5ms):
---Max Contact Current : 200A (@12V Contact Voltage)
---Max Contact Load : 2400W
CONTINOUS LOAD :
---Max Contact Current : 80A (@12V Contact Voltage)
---Max Contact Load : 960W
Note:
The contact current capacity will reduced alongside with the increase of the contact voltage.
@12VDC Contact Voltage --> Max Contact Surge Current is 200A
@24VDC Contact Voltage --> Max Contact Surge Current is 100A
@48VDC Contact Voltage --> Max Contact Surge Current is 50A
@100VDC Contact Voltage --> Max Contact Surge Current is 24A
@200VDC Contact Voltage --> Max Contact Surge Current is 12A
=================
100% brand new and high quality
SPECIFICATION:
COIL SIDE:
---Nominal Voltage : 72V DC
---Pickup Voltage : 48V DC
---Dropout Voltage: 8V DC
---Maximum Voltage : 90V DC
---Current Consumption : 0.15A / 9W (Max)
---Coil Resistant : 316 Ohms
CONTACT SIDE:
---Max Current : 200A (starting/surge load) (@12V Contact Voltage)
---Max Current : 80A (continues load usage) (@12V Contact Voltage)
---Max Load : 2400W (starting/surge load)
---Max Load : 960W (continues load usage)
Contact Form: Normal Open
Operate Time: 15ms
Release Time: 10ms
Color: black Size: 4.5*4.5*4.5cm
Temperature Range: -30 ~ +80 degrees Celsius
=================
