ARDUINO SIM - MKR GSM 1400 Cellular Kit

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

ORIGINAL ARDUINO - MADE IN ITALY

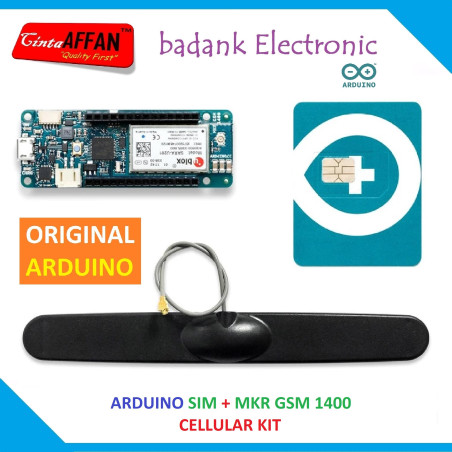

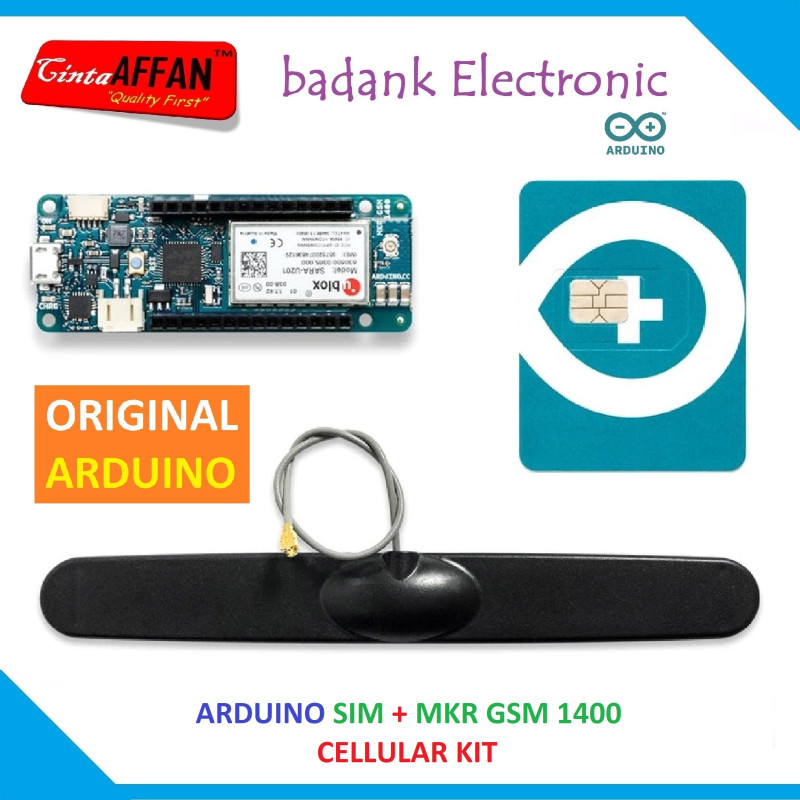

ARDUINO SIM + MKR GSM 1400 Cellular Kit

Terdiri dari:
1. MKR GSM 1400 Board
2. Arduino SIM
3. Antenna

Arduino GSM 1400 CELLULAR KIT includes a MKR GSM 1400 board, Arduino pentaband antenna, and an Arduino SIM card with a worldwide dataplan (except Brazil).

TECH SPECS:
The Arduino MKR GSM 1400 is based on the SAMD21 microcontroller.
MICROCONTROLLER : SAMD21 Cortex-M0+ 32bit low power ARM MCU (datasheet)
RADIO MODULE : u-blox SARA-U201 (datasheet)
SECURE ELEMENT : ATECC508 (datasheet)
BOARD POWER SUPPLY (USB/VIN) : 5V
SUPPORTED BATTERY : Li-Po Single Cell, 3.7V, 2500mAh Minimum
CIRCUIT OPERATING VOLTAGE : 3.3V
DIGITAL I/O PINS : 8
PWM PINS : 13 (0 .. 8, 10, 12, 18 / A3, 19 / A4)
UART : 1
SPI : 1
I2C : 1
ANALOG INPUT PINS : 7 (ADC 8/10/12 bit)
ANALOG OUTPUT PINS : 1 (DAC 10 bit)
EXTERNAL INTERRUPTS : 8 (0, 1, 4, 5, 6, 7, 8, 16 / A1, 17 / A2)
DC CURRENT PER I/O PIN : 7 mA
FLASH MEMORY : 256 KB (internal)
SRAM : 32 KB
EEPROM : no
CLOCK SPEED : 32.768 kHz (RTC), 48 MHz
LED_BUILTIN : 6 FULL-SPEED USB DEVICE AND EMBEDDED HOST
ANTENNA GAIN : 2dB (bundled antenna at the Arduino Store)
CARRIER FREQUENCY : GSM 850 MHz, E-GSM 1900 MHz, DCS 1800 MHz, PCS 1900 MHz
WORKING REGION : Global
SIM CARD : MicroSIM
LENGTH : 67.64 mm
WIDTH : 25 mm
WEIGHT : 32 gr.
