ARDUINO SIM - MKR GSM 1400 Cellular Kit
Rp2,120,000
Rp2,056,400
Save 3%
Tax excluded
SKU: 2398968197
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
ORIGINAL ARDUINO - MADE IN ITALY

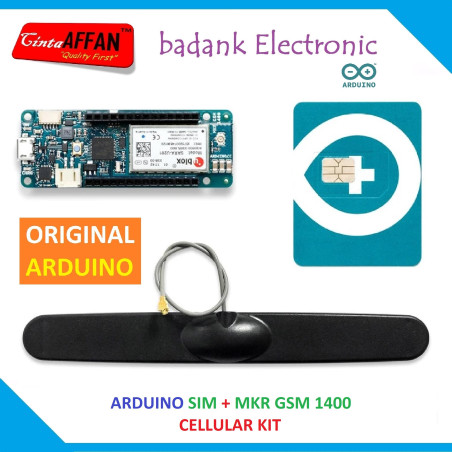

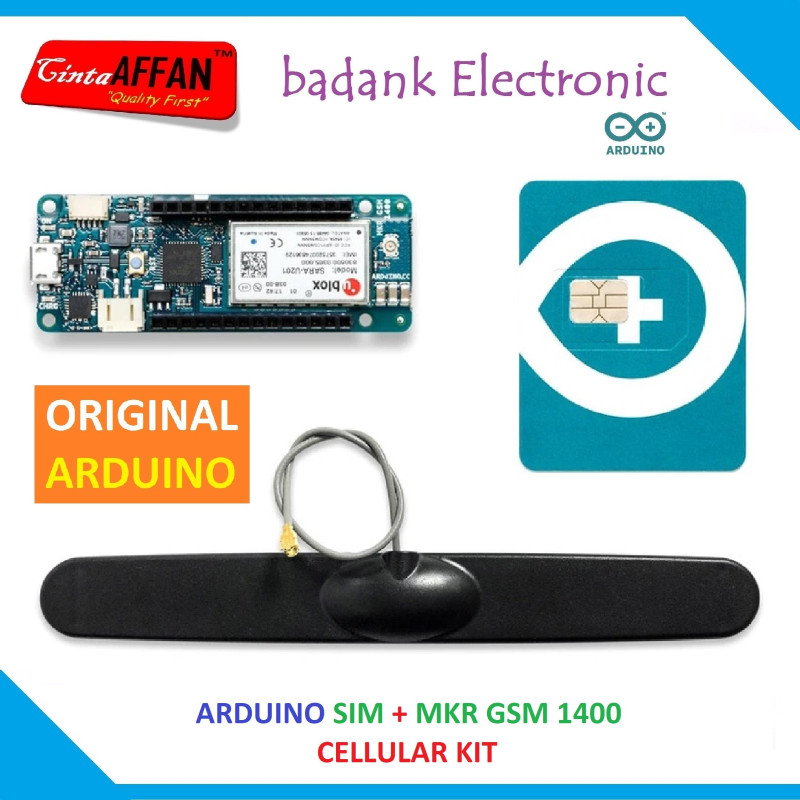

ARDUINO SIM + MKR GSM 1400 Cellular Kit
Terdiri dari:
1. MKR GSM 1400 Board
2. Arduino SIM
3. Antenna
Arduino GSM 1400 CELLULAR KIT includes a MKR GSM 1400 board, Arduino pentaband antenna, and an Arduino SIM card with a worldwide dataplan (except Brazil).
TECH SPECS:
The Arduino MKR GSM 1400 is based on the SAMD21 microcontroller.
MICROCONTROLLER : SAMD21 Cortex-M0+ 32bit low power ARM MCU (datasheet)
RADIO MODULE : u-blox SARA-U201 (datasheet)
SECURE ELEMENT : ATECC508 (datasheet)
BOARD POWER SUPPLY (USB/VIN) : 5V
SUPPORTED BATTERY : Li-Po Single Cell, 3.7V, 2500mAh Minimum
CIRCUIT OPERATING VOLTAGE : 3.3V
DIGITAL I/O PINS : 8
PWM PINS : 13 (0 .. 8, 10, 12, 18 / A3, 19 / A4)
UART : 1
SPI : 1
I2C : 1
ANALOG INPUT PINS : 7 (ADC 8/10/12 bit)
ANALOG OUTPUT PINS : 1 (DAC 10 bit)
EXTERNAL INTERRUPTS : 8 (0, 1, 4, 5, 6, 7, 8, 16 / A1, 17 / A2)
DC CURRENT PER I/O PIN : 7 mA
FLASH MEMORY : 256 KB (internal)
SRAM : 32 KB
EEPROM : no
CLOCK SPEED : 32.768 kHz (RTC), 48 MHz
LED_BUILTIN : 6 FULL-SPEED USB DEVICE AND EMBEDDED HOST
ANTENNA GAIN : 2dB (bundled antenna at the Arduino Store)
CARRIER FREQUENCY : GSM 850 MHz, E-GSM 1900 MHz, DCS 1800 MHz, PCS 1900 MHz
WORKING REGION : Global
SIM CARD : MicroSIM
LENGTH : 67.64 mm
WIDTH : 25 mm
WEIGHT : 32 gr.
