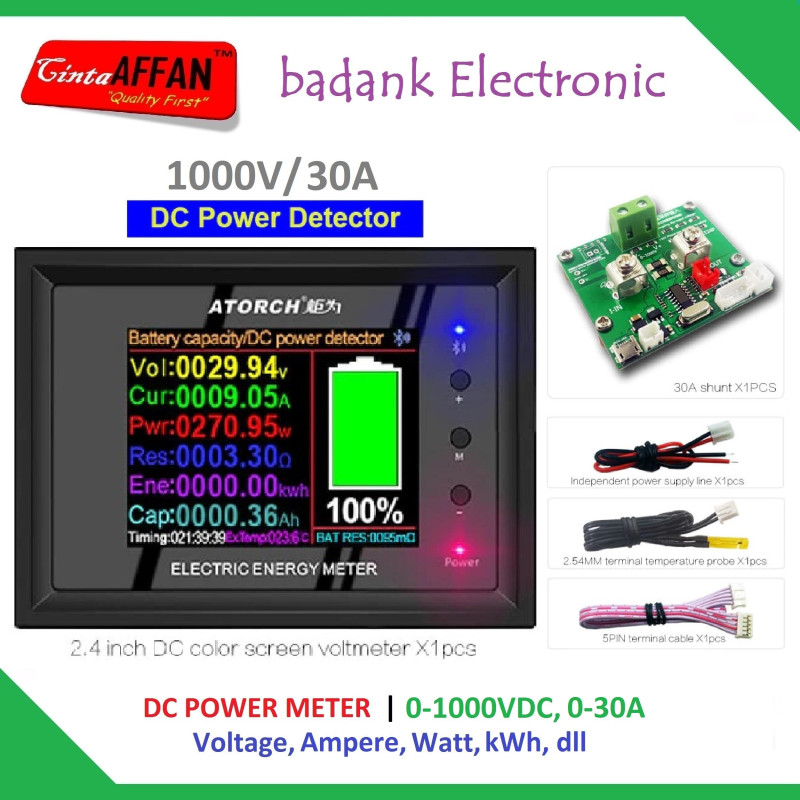

DC 0-1000V 0-30A Volt Ampere Power kWh Energy Meter dengan Bluetooth

##################################

READY STOCK, SILAHKAN LANGSUNG ORDER

##################################

*DC POWER METER 0-1000V/0-30A *Dengan SHUNT Module 30A *Produk sebagaimana gambar EXTERNAL POWER SUPPLY (untuk menghidupkan power meter): 1. Via Micro USB 5V ( gt; 1A) 2. Via terminal / pin, tegangan 5V-24V DC File Download: 1. User manual, PC software installation instruction and PC software and Android APP

---

---

======= SPECIFICATION Product use: This product is used to test the capacity of various batteries, discharge and various power adapters. Detect the voltage, current, energy and other parameters of various DC power supplies. Product Size: Installation size: length 76mm X width 53mm Panel size: length 85.7mm X width 63mm Electrical parameters: Voltage measurement range under test voltage power supply mode: 0 ~ 1000V Voltage measurement range in independent voltage supply mode: 0 ~ 100V Measuring power range: 0 ~30000W (0 ~ 30 kW) Measuring current range: 0 ~ 30A Reminder: If you enable the external power-off relay, please be sure to supply the system with independent power supply 5V-24V / gt; 1A power supply to avoid the failure of the relay control current and system instability Products List: 1. 2.4 inch DC color screen voltmeter X1pcs 2. 2.54MM terminal temperature probe X1pcs 3. 30A shunt x1pcs 4. Independent power supply line X1pcs 5. 5PIN terminal cable X1pcs

---

---
