AC 3-PHASE LCD Protection Relay Unbalance Sequence Over Under VOLTAGE
search
  • AC 3-PHASE LCD Protection Relay Unbalance Sequence Over Under VOLTAGE
  • AC 3-PHASE LCD Protection Relay Unbalance Sequence Over Under VOLTAGE
  • AC 3-PHASE LCD Protection Relay Unbalance Sequence Over Under VOLTAGE
  • AC 3-PHASE LCD Protection Relay Unbalance Sequence Over Under VOLTAGE
  • AC 3-PHASE LCD Protection Relay Unbalance Sequence Over Under VOLTAGE

AC 3-PHASE LCD Protection Relay Unbalance Sequence Over Under VOLTAGE

Rp550.000
Rp533.500 Hemat 3%
Termasuk pajak
Jumlah

SKU: 1448431271
  Kebijakan Keamanan

Kami melindungi informasi pribadi Anda dengan langkah keamanan yang tepat untuk mencegah akses tanpa izin, penyalahgunaan, atau pengungkapan.

  Kebijakan Pengiriman

Pesanan diproses dan dikirim secepat mungkin. Waktu pengiriman dapat berbeda tergantung tujuan, kurir, dan ketersediaan produk.

  Kebijakan Pengembalian

Jika Anda menerima barang rusak, cacat, atau tidak sesuai, silakan hubungi kami segera. Pengembalian atau penukaran mengikuti ketentuan dan batas waktu yang berlaku.

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

TOMZN

3-PHASE 3-WIRE (L1, L2, L3)
Adjustable Over Under Voltage Phase Unbalance Sequence Relay Protection Device DIN Rail

NOTE :

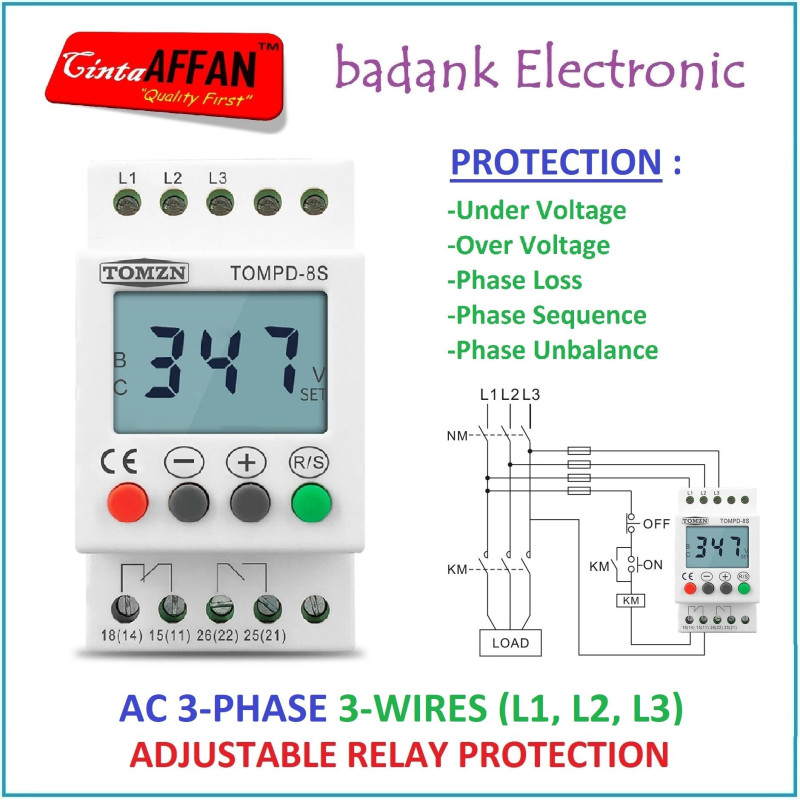

Produk ini perlu dikombinasikan dengan CONTACTOR 3-Phase 3-Pole, sebagaimana schematic pada gambar

FEATURES
-- Microprocessor technology provides highly accurate and repeatable protection
-- Built-in LCD and keypad afford a precise diqital setting
-- Compact modular 43mm housing
-- Adjustable over-and under voltage, phase unbalance threshold
-- Independent adjustable delay time for over voltage, under voltage phase unbalance
-- Adjustable reset method automatic reset or manual reset-- 1NO amp; 1NC contacts
-- Failure recording with last 3 faults

PROTECTIVE FUNCTIONS
-- Phase Loss (Failure)
-- Phase Sequence (Reversal)
-- Phase Unbalance (Asymmetry)
-- Undervoltage
-- Overvoltage

TYPICAL APPLICATIONS
-- Pumps
-- Fans
-- Blowers
-- Motors
-- Compressors
-- other 3-phase equipment

TECHNICAL DATA
-- Indicators : LCD indicating voltage, operation and fault status
-- Output contacts : 1NO amp; 1NC
-- Contact capacity : 6A ,250VAC
-- Dimensions (H x W x D) : 80x43x54mm
-- Mounting : DIN rail
