Description
Product Details

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

TOMZN

3-PHASE 3-WIRE (L1, L2, L3)
Adjustable Over Under Voltage Phase Unbalance Sequence Relay Protection Device DIN Rail

NOTE :

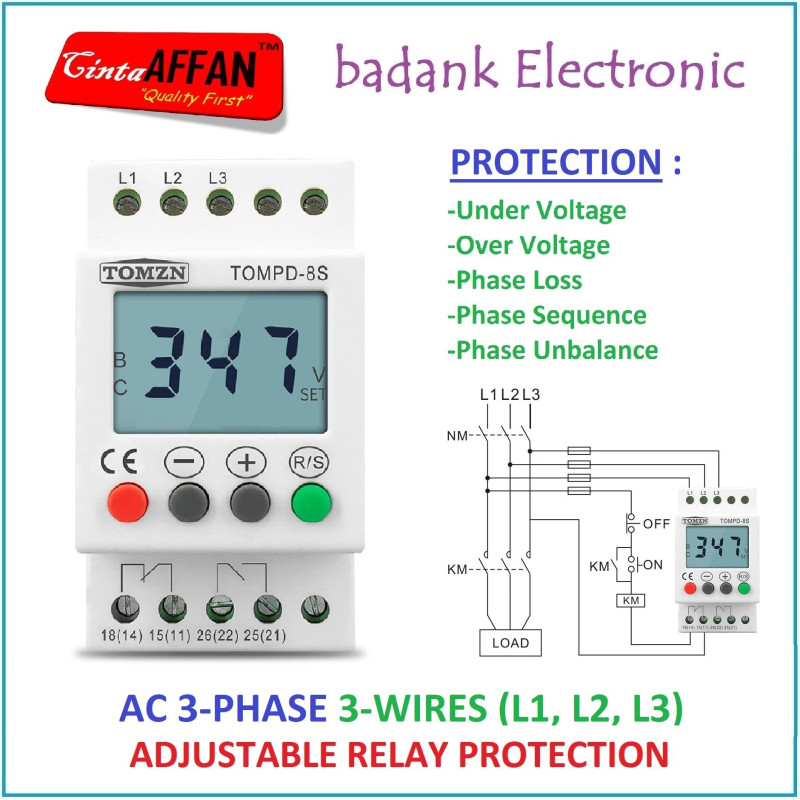

Produk ini perlu dikombinasikan dengan CONTACTOR 3-Phase 3-Pole, sebagaimana schematic pada gambar

FEATURES
-- Microprocessor technology provides highly accurate and repeatable protection
-- Built-in LCD and keypad afford a precise diqital setting
-- Compact modular 43mm housing
-- Adjustable over-and under voltage, phase unbalance threshold
-- Independent adjustable delay time for over voltage, under voltage phase unbalance
-- Adjustable reset method automatic reset or manual reset-- 1NO amp; 1NC contacts
-- Failure recording with last 3 faults

PROTECTIVE FUNCTIONS
-- Phase Loss (Failure)
-- Phase Sequence (Reversal)
-- Phase Unbalance (Asymmetry)
-- Undervoltage
-- Overvoltage

TYPICAL APPLICATIONS
-- Pumps
-- Fans
-- Blowers
-- Motors
-- Compressors
-- other 3-phase equipment

TECHNICAL DATA
-- Indicators : LCD indicating voltage, operation and fault status
-- Output contacts : 1NO amp; 1NC
-- Contact capacity : 6A ,250VAC
-- Dimensions (H x W x D) : 80x43x54mm
-- Mounting : DIN rail
