Camera Module 8MP for NVIDIA Jetson ORIN NANO and Jetson ORIN NX Developer Kit

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

Camera Module 8MP
(Field Of View / FOV 77 Degree)

Compatible for :
- NVIDIA Jetson ORIN NANO Developer Kit
- NVIDIA Jetson ORIN NX Developer Kit

Note : NOT COMPATIBLE FOR "JETSON NANO"

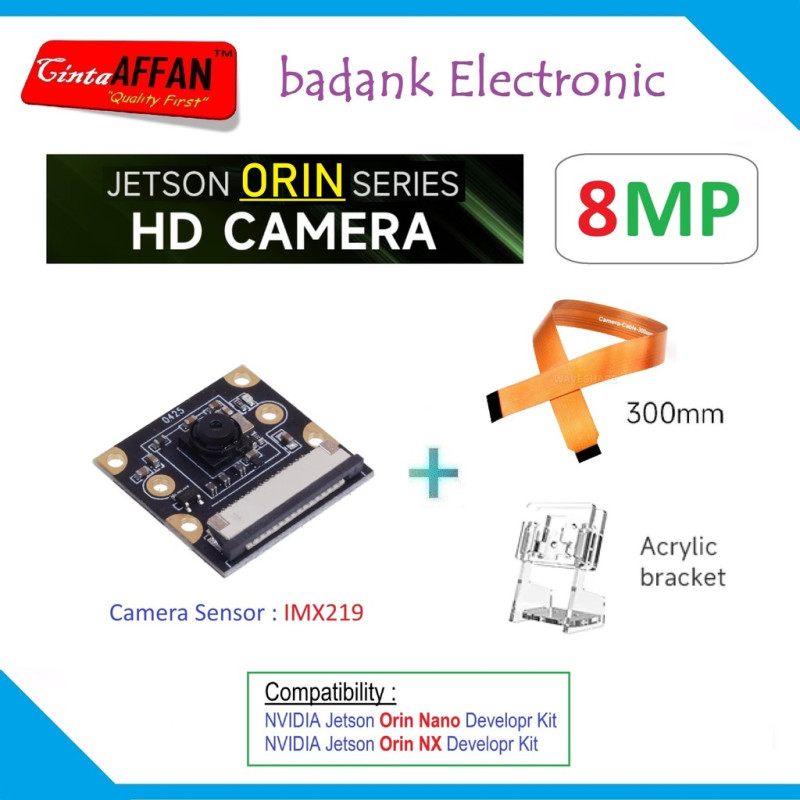

Part-list :
--Camera sensor IMX219
--Camera Cable (Panjang 30cm)
--Acrylic Bracket

PRODUK SESUAI GAMBAR

Order Jetson ORIN NANO 8GB Dev Kit :

Order Jetson ORIN NX Dev Kit :

Specification:

Megapixels: 8 Megapixels
Photosensitive chip: Sony IMX219
Assembly Technique: SMT (ROSH)
Resolution: 3280 × 2464
Pixel Size: 1.12micro-m × 1.12micro-m
CMOS Size: 1/4 inch
Aperture (F): 2
Focus: fixed
Focal Length: 2.96mm
Lens Construction: 4P
Diagonal Field of View (FOV): 77 degrees
Distortion:
EFL: 2.93mm
BFL (Optical): 1.16mm
Maximum Image Transfer Rate: 30 fps for QSXGA
Output Formats: 8/10bit RGB RAW output
S/N Ratio: 39db
Dynamic Range: 69db
Sensitivity: 600mV/Lux-sec
Relative Illumination (Sensor): 70%
IR Filter: 650±10nm
Object Distance: 30CM
Interface: 15p-1.0 mipi
Power Supply: 3.3V (pin15)
Operating Temperature: -20°C to 70°C
Temperature (Stable Image): 0°C to 50°C
Lens Size: 6.5mm × 6.5mm
Module Size: 25mm × 24mm × 5.3±0.2mm
