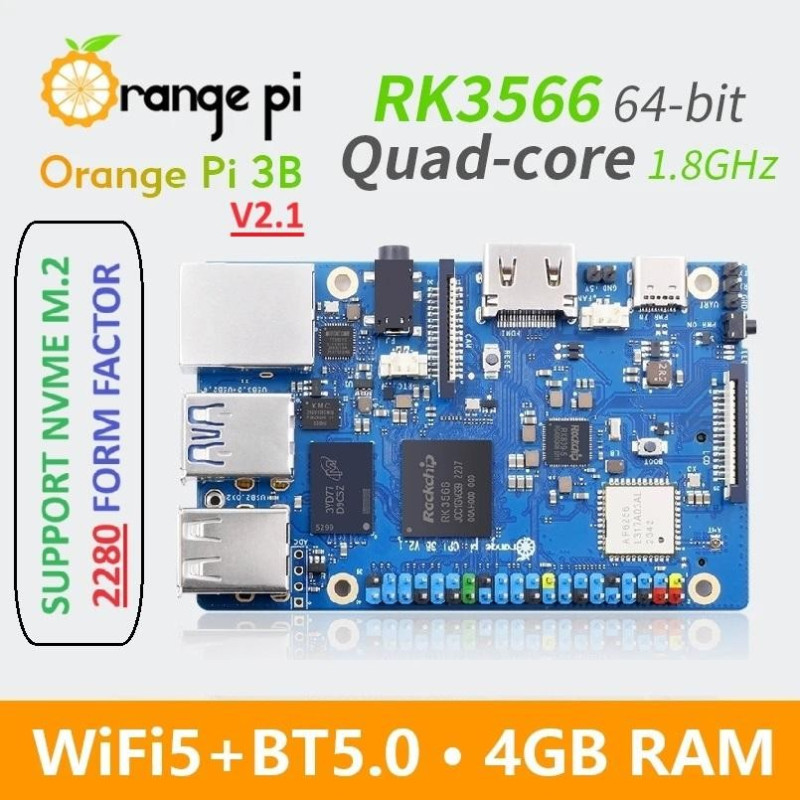

Orange Pi 3B - 4GB RAM Quad-core 64-bit Cortex-A55 Processor up to 1.8GHz

Name: Orange Pi 3B - 4GB RAM Quad-core 64-bit Cortex-A55 Processor up to 1.8GHz
Brand: badank Electronic
SKU: 7793295604
Price: 1533570 IDR
Availability: InStock

Rp1,581,000

Rp1,533,570 Save 3%

Tax excluded

Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

Description
Product Details

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

Orange Pi 3B (4GB RAM) - Version V2.1

Compatible for onboard (backside) installation of SSD NVME M.2 2280 Form Factor

Note : Board Version V2.1 tidak cocok menggunakan casing versi sebelumnya (V1.1)

SUPPORTED OS (Operating System) :

OFFICIAL IMAGES :
- Orange Pi OS (Arch)
- Orange Pi OS (OH)
- Ubuntu
- Debian
- Android
- OpenWRT

THIRD PARTY IMAGE :
- Raspberry Pi OS

(OS Image MUST be downloaded from Orange Pi website).

SPEC:
SoC : RockchipRK3566
CPU : Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz
GPU :
• ARM Mali G52 2EE graphics processor
• Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 • Embedded high performance 2D acceleration hardware
NPU :
• Integrated RKNN NPU AI accelerator with 0.8Tops@INT8 performance
• Support oneclick conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models
VPU :
• 4K@60fps H.265/H.264/VP9 video decoding
• 1080P@100fps H.265 video encoding
• 1080P@60fps H.264 video encoding
PMU : RockChip RK809-5
RAM : 2GB/4GB/8GB （LPDDR4/4x）
Memory :
• Support eMMC module:16GB/32GB/64GB/128GB/256GB
• SPI Flash: 16MB/32MB
• M.2 M-KEY slot: PCIe2.0 SSD NVME M.2 2280 Form Factor
• Micro SD slot
Wi-Fi+BT : Wi-Fi 5+BT 5.0, BLE (AP6256)
Ethernet : 10/100/1000Mbps Ethernet (On-board PHY chip: YT8531C-CA)
Video Output :
• 1* HDMI TX 2.0 , up to 4K@60fps
• 1*MIPI DSI 2 lane
• eDP1.3 Camera : 1*MIPI CSI 2 lane camera interface
USB :
• 1*USB 2.0 support Device or HOST mode
• 1*USB 3.0 HOST
• 2*USB 2.0 HOST
Audio : 3.5mm headphone jack audio in/out
Button : 1* MaskROM key, 1* RESET key, 1 *POWER key
FAN : 2Pin 1.25mm size 5V fan connector
RTC : 2Pin 1.25mm size battery backup connector 40Pin : 40Pin functional expansion interface, supporting the following interface types: GPIO, UART, I2C, SPI, PWM
Power Source : Type-C 5V3A
