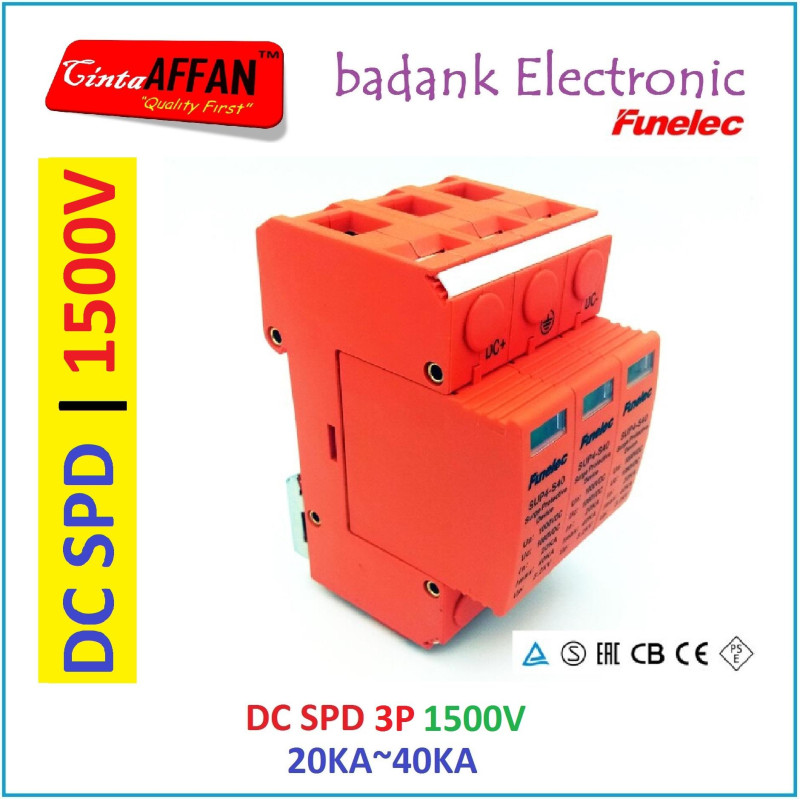

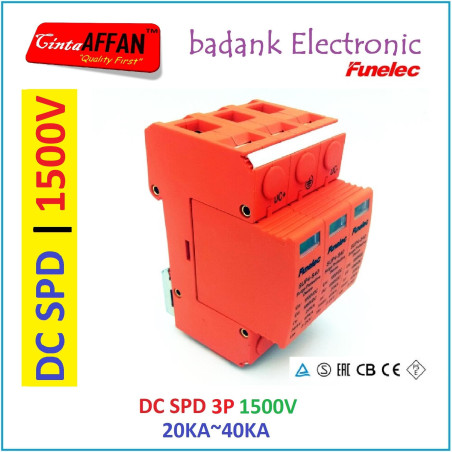

DC SPD 3P 1500V 20-40KA Surge Arrester Protect Device Solar Cell Surya
Rp265,000
Rp257,050
Save 3%
Tax excluded
SKU: 1254037034
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################
BRAND : FUNELEC
Class II, Type T2
DC SPD 3P (3-Pole) 1500V 20KA~40KA
SURGE PROTECT DEVICE / SURGE ARRESTER
Aplikasi : Sistem Panel Surya, Wind Turbine maupun sistem tegangan DC lainnya.
==
SPECIFICATIONS:
Rated voltage : 1500 (VDC)
Continue to work voltage : 1650 (VDC)
Nominal flow capacity : 20 kA (KA8/20s)
Maximum flow capacity : 40 kA (KA8/20s)
Protection level : 2.8 (kV)
Response time : 25 (ns)
Leakage current 0.75U 1mA : 20 (A)
Working temperature : -40~+85 (c)
==
1254037034
