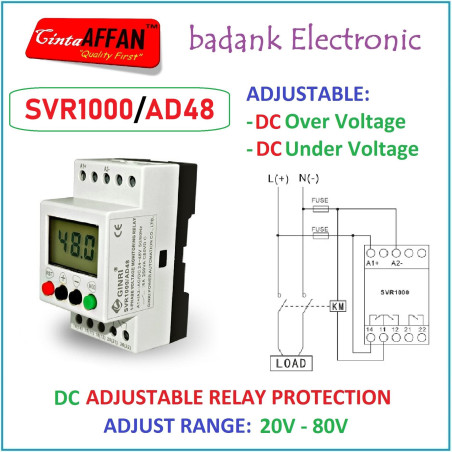

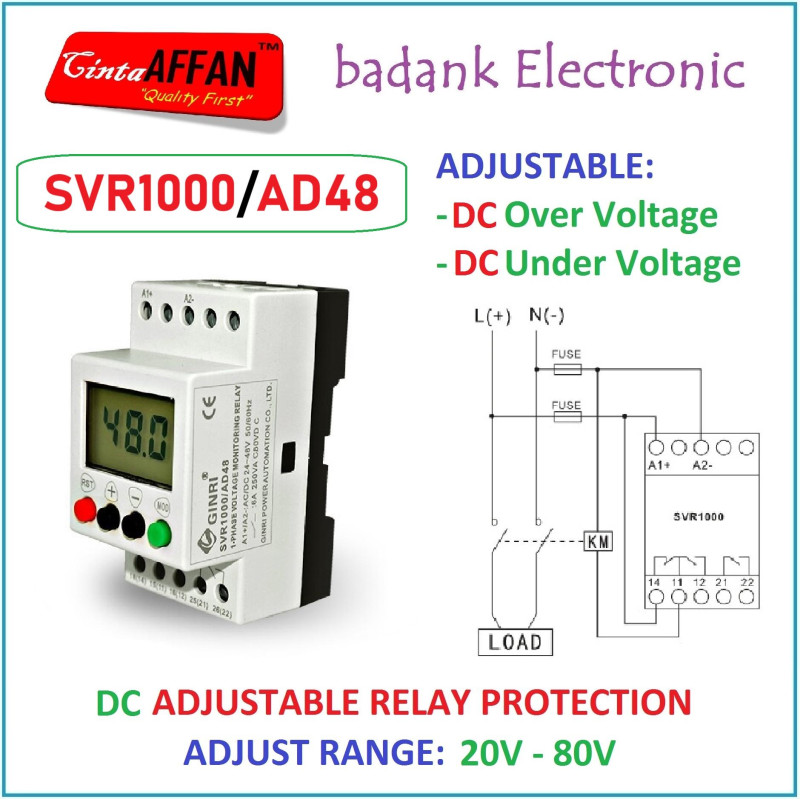

GINRI SVR1000-AD48 DC Protection Relay 24V 36V 48V ADJUSTABLE Over Under VOLTAGE Battery

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

GNRI AC/DC Adjustable Over-Under Voltage Monitoring Relay Protection Device DIN Rail

Model : SVR1000/AD48

Applicable for RATED VOLTAGE AC/DC 24V 36V 48V

ADJUSTABLE VOLTAGE RANGE : 20V - 80V AC/DC

FEATURES
-- Powered by the measuring circuit
-- Built-in LCD and keypad afford a precise, digital setting
-- Compact modular 43mm housing
-- Adjustable over- and undervoltage threshold
-- Independent adjustable delay time for overvoltage, undervoltage
-- 1 CO & 1NC contacts
-- Fault recording with last 3 faults

PROTECTIVE FUNCTIONS
-- Overvoltage
-- Undervoltage

TYPICAL APPLICATIONS
-- Pumps Fans
-- Blowers Motors
-- Compressors Solar Off Grid Inverter

TECHNICAL DATA
-- Model : SVR1000/AD48
-- Measuring circuit : A1+, A2-
-- Rated voltage : AC/DC 24~48V,50/60Hz
-- Monitoring functions : over-voltage, undervoltage
-- Overvoltage setting range : AC/DC 20.0~80.0V adjustable
-- Undervoltage setting range : AC/DC 20.0~80.0V adjustable
-- Voltage hysteresis : 0.1~30.0V adjustable
-- Delay time for overvoltage and undervoltage : 0.1-999s adjustable
-- Reset mode : Manual/ Automatic/Automatic with power-on delay
-- Delay time for reset : 0.1-999s adjustable
-- Indicators : LCD indicating voltage, operation and fault status
-- Output contacts : 1 CO & 1NC
-- Contact capacity : 6A, 250VAC
-- Dimensions (H x W x D) : 804354mm
-- Mounting : DIN rail
