READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

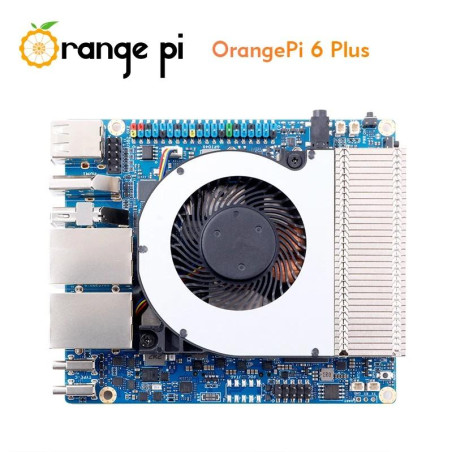

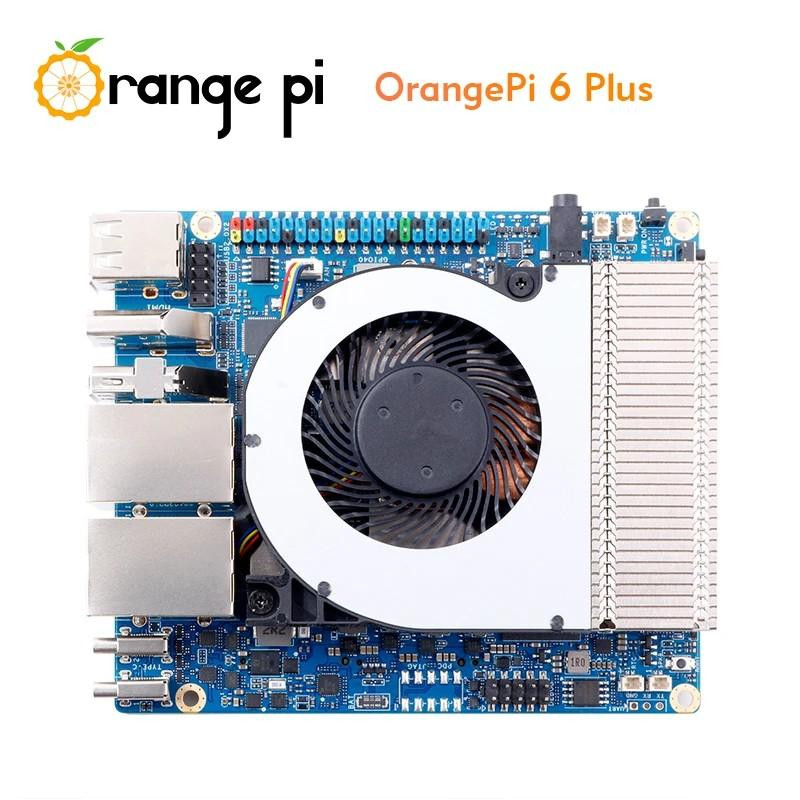

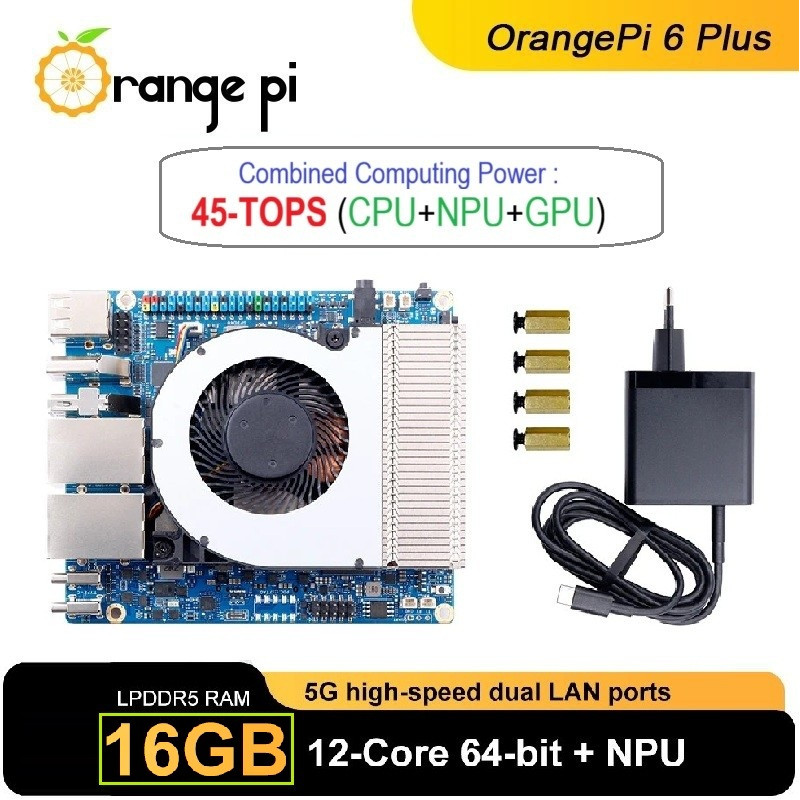

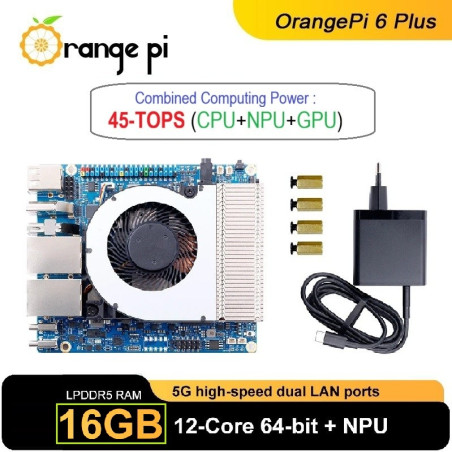

ORANGE PI 6 PLUS (RAM 16GB)
* 12-Core CPU
* 45-TOPS AI Computing Power (CPU+NPU+GPU)
* Integrated Cooling Fan
* Included Power Supply 20V 100W
Orange Pi 6 Plus adopts CIX CD8180/CD8160 SoC, built-in 12-core 64-bit processor + NPU processor, integrated graphics processor, equipped with 16GB/32GB /64GB LPDDR5, and provides two M.2 KEY-M interfaces 2280 for NVMe SSD,as well as SPI FLASH and TF slots to meet the needs of fast read/write and high-capacity storage; It is equipped with 45 Tops combined AI computing power (CPU+NPU+GPU) to support a variety of end-side large-model applications and a rich end-side AI scene
HARDWARE PARAMETERS :
CPU : 12-core 64-bit processor
NPU : 28.8Tops
GPU : Integrated graphics processor
Combined Computing Power : 45TOPS (CPU+NPU+GPU)
RAM (LPDDR5 : 128-bit x 32) : 16GB / 32GB /64GB
Storage Expansion :
• SPI FLASH: 64Mbit
• NVME SSD (PCIe 4 lane, M.2 KEY-M interface 2280) *2
• TF slot
Wi-Fi Module : M.2 KEY-E socket
PCIE Ethernet : 5G Ethernet*2
USB :
• USB 3.0 HOST *2
• USB2.0*2
• Reserved USB 2.0 9-pin socket
• USB full-function Type-C 3.0 HOST*2
Camera Interface : 2*4-lane MIPI CSI camera interface
Display Interface :
• 1*DP1.4 4K@120HZ
• 2*TYPE-C DP
• 1*HDMI1.4 4K@60HZ
• 1*eDP 4K@60HZ
Audio : 3.5mm headphone jack audio input/output, speakers*2, analog MIC*1
TYPE-C Port Power Supply : Type-C PD 20V IN*2, standard 100W
Expansion Interface : 40-pin function expansion interface, supporting the following interface types:
GPIO, UART, I2C, SPI, PWM
Indicator Light : Power-on indicator, system indicator, battery charging indicator
Button : 1* Power button, 1* BOOT button, 1* RESET button
Fan Interface : 1* Fan connector with PWM control
Reserved Interface : Board-to-board battery connector; 2-pin RTC connector
Power Adapter : Type-C PD 20V input, standard 100W
Operating System : Debian, Ubuntu, Android, Windows, ROS2
Appearance Dimensions : 115*100mm
