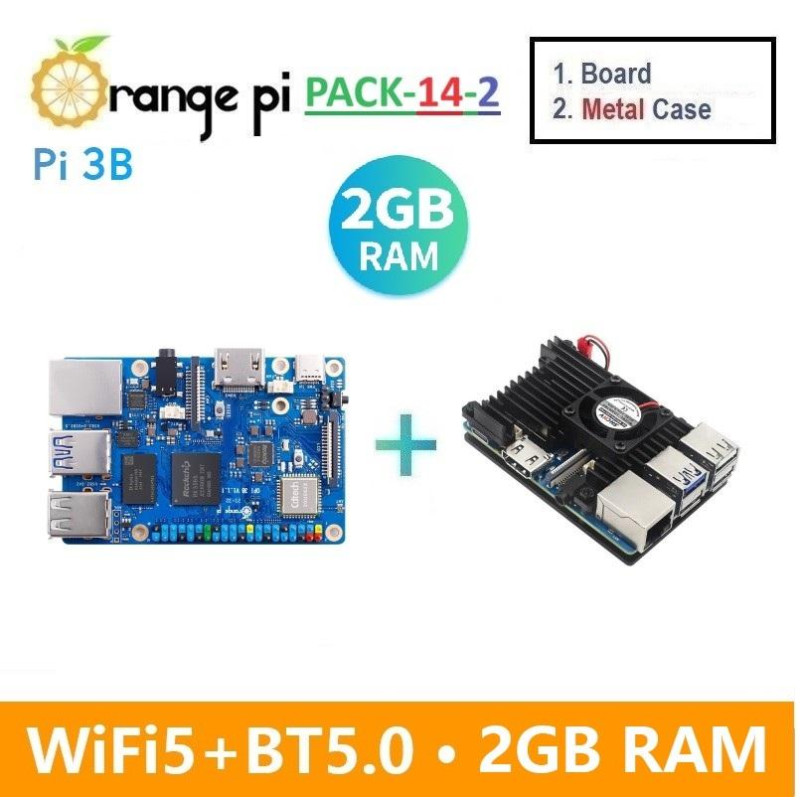

PACK-14-2 Orange Pi 3B (2GB) CASE
Rp1,255,000
Rp1,217,350
Save 3%
Tax excluded
SKU: 12903816833
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################
PACK-14-2 :
1. ORANGE PI 3B (RAM 2GB)
2. METAL HEATSINK CASE
SUPPORTED OS (Operating System):
- Orange Pi OS (Arch)
- Ubuntu
- Debian
- Android
- OpenHarmony
SPEC:
SoC : RockchipRK3566
CPU : Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz
GPU :
--ARM Mali G52 2EE graphics processor
--Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
--Embedded high performance 2D acceleration hardware
NPU :
--Integrated RKNN NPU AI accelerator with 0.8Tops@INT8 performance
--Support one-click conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models
PMU : RockChip RK809-5
RAM : 2GB/4GB/8GB （LPDDR4/4x）
Memory :
--Support eMMC module:16GB/32GB/64GB/128GB/256GB
--SPI Flash: 16MB/32MB
--M.2 M-KEY slot（optional）: SATA3 or PCIe2.0 NVME SSDs
--Micro SD slot
Wi-Fi+BT : Wi-Fi 5+BT 5.0，BLE（20U5622）
Ethernet : 10/100/1000Mbps Ethernet (On-board PHY chip: YT8531C)
Video Output :
--1* HDMI TX 2.0 , up to 4K@60fps
--1*MIPI DSI 2 lane
--eDP1.3
Camera : 1*MIPI CSI 2 lane camera interface
USB :
--1*USB 2.0 support Device or HOST mode
--1*USB 3.0 HOST
--2*USB 2.0 HOST
Audio : 3.5mm headphone jack audio in/out
Button : 1* MaskROM key, 1* RESET key, 1 *POWER key FAN : 2Pin 1.25mm size 5V fan connector
RTC : 2Pin 1.25mm size battery backup connector
40Pin : 40Pin functional expansion interface, supporting the following interface types: GPIO, UART, I2C, SPI, PWM
Power Source : Type-C 5V3A
