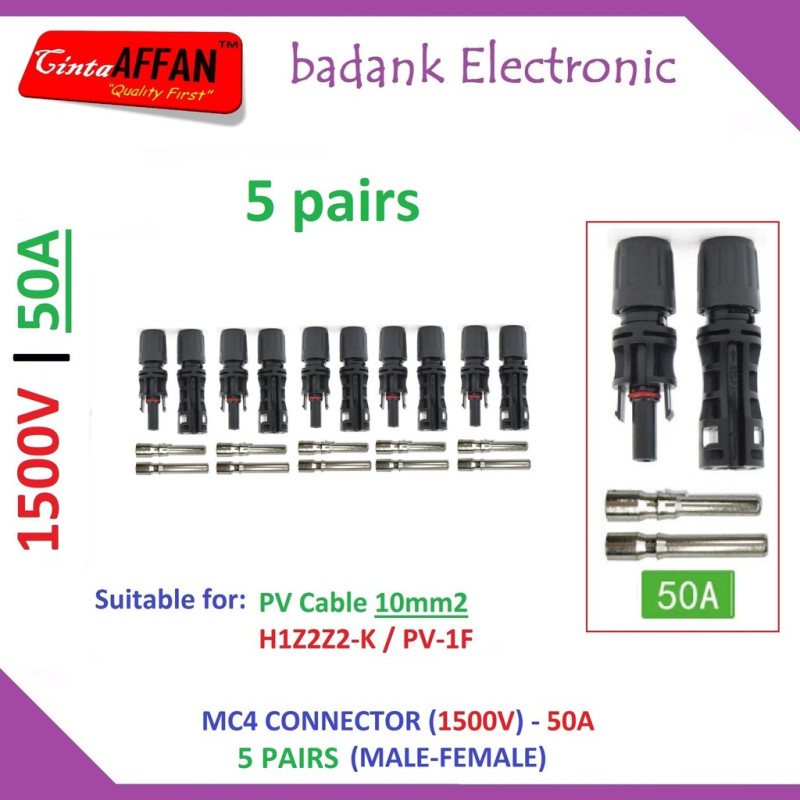

5 pairs MC4 Connector 1500V 50A Male/Female Solar Cell Panel Surya
Rp110,000
Rp106,700
Save 3%
Tax excluded
SKU: 1963064828
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
Konektor MC4 1500V 50A (sepasang, Male-Female)
untuk sambungan kabel Panel Surya
Note:
- Harga adalah untuk 5 pairs/pasang (Male-Female) konektor
- Produk sebagaimana gambar.
SPECIFICATION:
Rated Voltage : 1500V DC
Rated Current : 50A
PV Cable : 10mm2
Test Voltage : 6kV (50Hz, 1min)
Ambient Temperature Range : -40 degC to 90 degC
Upper Limiting Temperature : 105 degC
Degree of Protection : IP67
Contact Resistance of Plug Connector : 0.5 mili-Ohm
Safety Class : II
Contact Material : Copper Alloy, tin plated Insulation
Material : PC/PV
Locking System : Snap-in
Flame Class : U:-94-V0
Degree of Severity : IEC-60068-2-52
1963064828
