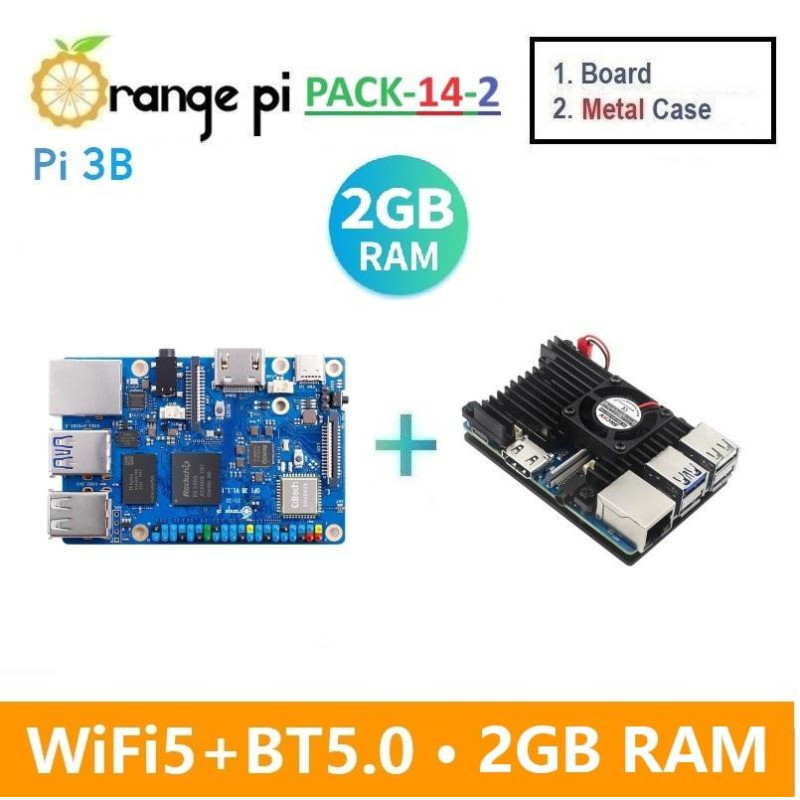

PACK-14-2 Orange Pi 3B (2GB) CASE

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

PACK-14-2 :
1. ORANGE PI 3B (RAM 2GB) - V1.1
2. METAL HEATSINK CASE

SUPPORTED OS (Operating System):
- Orange Pi OS (Arch)
- Ubuntu
- Debian
- Android
- OpenHarmony

---

SPEC:

SoC : RockchipRK3566
CPU : Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz
GPU :
--ARM Mali G52 2EE graphics processor
--Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
--Embedded high performance 2D acceleration hardware
NPU :
--Integrated RKNN NPU AI accelerator with 0.8Tops@INT8 performance
--Support one-click conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models
PMU : RockChip RK809-5
RAM : 2GB/4GB/8GB （LPDDR4/4x）
Memory :
--Support eMMC module:16GB/32GB/64GB/128GB/256GB
--SPI Flash: 16MB/32MB
--M.2 M-KEY slot（optional）: SATA3 or PCIe2.0 NVME SSDs
--Micro SD slot
Wi-Fi+BT : Wi-Fi 5+BT 5.0，BLE（20U5622）
Ethernet : 10/100/1000Mbps Ethernet (On-board PHY chip: YT8531C)
Video Output :
--1* HDMI TX 2.0 , up to 4K@60fps
--1*MIPI DSI 2 lane
--eDP1.3
Camera : 1*MIPI CSI 2 lane camera interface
USB :
--1*USB 2.0 support Device or HOST mode
--1*USB 3.0 HOST
--2*USB 2.0 HOST
Audio : 3.5mm headphone jack audio in/out
Button : 1* MaskROM key, 1* RESET key, 1 *POWER key FAN : 2Pin 1.25mm size 5V fan connector
RTC : 2Pin 1.25mm size battery backup connector
40Pin : 40Pin functional expansion interface, supporting the following interface types: GPIO, UART, I2C, SPI, PWM
Power Source : Type-C 5V3A

---
