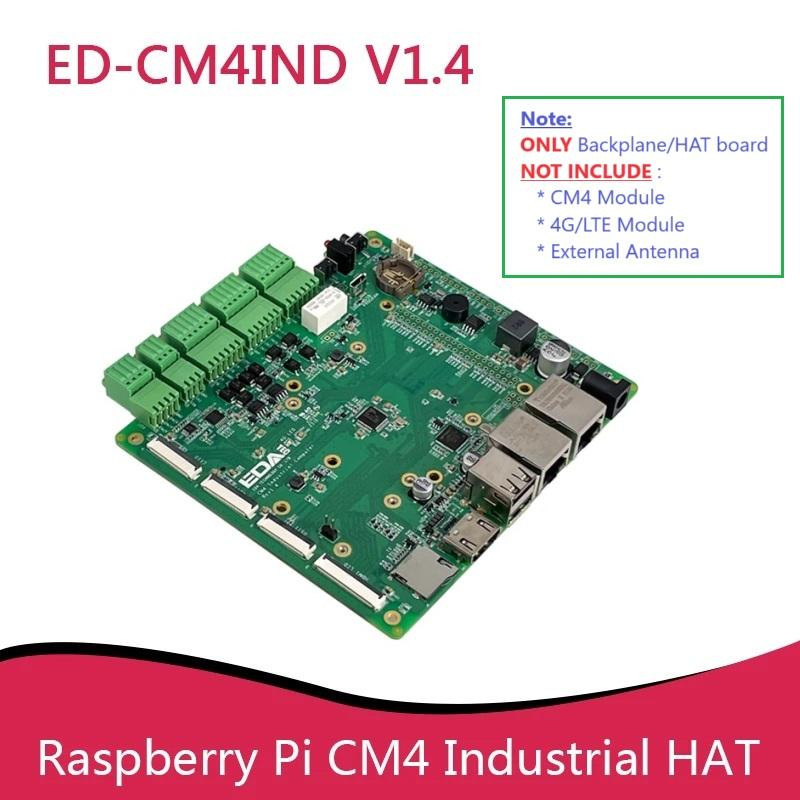

Industrial Backplane for Raspberry Pi Compute Module 4 CM4 HAT

################################## READY STOCK, SILAHKAN LANGSUNG ORDER ################################## ED-CM4IND V1.4 INDUSTRIAL BACKPLANE / HAT for RASPBERRY PI COMPUTE MODULE 4 Order Raspberry CM4 : CM4108032 -- gt; https://www.tokopedia.com/badank/raspberry-pi-compute-module-4-8gb-ram-32gb-emmc-wifi-bt-cm4108032 Order Adaptor : Note: - Hanya unit Backplane/HAT saja - TIDAK TERMASUK Module CM4 - TIDAK TERMASUK Module 4G/LTE - TIDAK TERMASUK External Antenna

---

TECHNICAL SPEC: Power In : 9 ~ 36V* DC In, Power Jack #Industrial Interfaces and Functions -- 2x RS485 -- 1x RS232 -- 1x Serial(TTL) -- 3x ADC Channel(12-bits) -- 2x isolated DI -- 1x non-isolated IO -- 1x DPDT Relay -- 1x adjustable speed fan control -- 1x RTC with backup battery -- 1x LED for power indication -- 1x LED for system working status indication -- 1x system reset button -- 1x user custom button -- 1x Buzzer #Expansion Interfaces -- 1x standard Raspberry Pi 40-PIN GPIO -- 1x Mini-PCIe ** 1-lane PCIe Gen2, up to 5Gbps ** 1x USB 2.0 Host, Support 4G LTE modules -- 2x USB Host Pin Header(1x4 2.54mm) -- 1x Serial(TTL) Pin Header(1x4 2.54mm) #Wireless -- 1x 2.4G/5.8G Dual-band WiFi, Compatible with IEEE 802.11 b/g/n/ac -- 1x Bluetooth 5.0, Support BLE ** Optional Raspberry Pi Official External WiFi/BT antenna, certified with Raspberry Pi CM4 -- 1x Optional 4G LTE module #Wired Interfaces -- 1x 10/100/1000M Gigabit-Ethernet, Support PoE(with Raspberry Pi PoE HAT) -- 1x 10/100M Fast-Ethernet -- 2x USB 2.0 Host Type A -- 1x micro-B USB Slave(For eMMC Flashing) #Camera and Displays -- 2x CSI, Support Raspberry Pi Official 5M amp; 8M Cameras -- 1x standard HDMi Type-A -- 1x DSI, Support Raspberry Pi Official 7 #34; Touch Display -- 1x HDMI FPC, Support Touch Display

---
