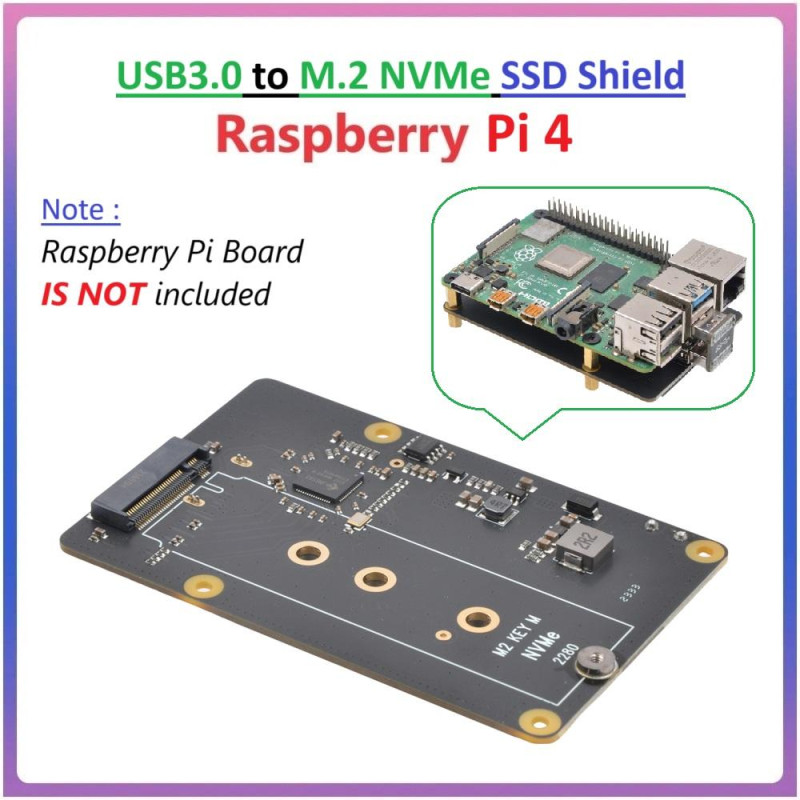

SUPTRONICS X872 USB3.0 to M.2 NVMe SSD Shield for Raspberry Pi 4

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

USB3.0 to M.2 NVMe SSD BOARD / SHIELD / HAT for Raspberry Pi 4

Compatible for :
-- NVME M.2 2230 / 2242 / 2260 / 2280

TIDAK SESUAI UNTUK SSD M.2 SATA NGFF

---

OVERVIEW :

The X872 is a USB 3.0 to NVMe SSD expansion board specifically designed for the Raspberry Pi 4, providing a simple and speedy means to expand storage capacity for your Raspberry Pi 4. This compact and sleek shield facilitates effortless connection of various M.2 SSD sizes (including 2280, 2260, 2242, and 2230) to your Raspberry Pi 4. The SuperSpeed USB 3.0 port enables rapid data transfer speeds of up to 5Gbps, allowing you to move large amounts of data within seconds.

FEATURES :

- Compatible with Raspberry Pi 4
- Ideal storage solution for Raspberry Pi 4 - M.2 NVMe SSD Shield
- Supports high-capacity M.2 NVMe solid-state drives up to 4TB
- Accommodates various M.2 NVMe SSD form factors, including 2280, 2260, 2242, and 2230
- Supporting booting OS from your SSD for faster app opens, web serving and file copying
- Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller
- USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi
- Compatible with USB 2.0
- LED blue indicator indicates drive status
- Powering via both GPIO pin header and USB port, ensuring sufficient power supply without any worries
- Designed to be attached on bottom, allows using your favorite HATs alongside it
- Specially-made USB3.1 jumper to connect with Raspberry Pi - no additional cables needed

TECHNICAL SPECIFICATION :

Power supply : 5Vdc +/-5% via USB3 port & GPIO pin header
Ports & Connectors :
--- USB socket - USB 3.0 type A
--- SSD connector - M.2 KEY-M 67P
PCB Size : 87.3mm x 56mm

PACKING LIST :

- X872 V2.0 shield x1
- Screw pack x1

---
