EPEVER WiFi 2.4G RJ45 D Module Extension Cable for Tracer AN 50-100A

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

EPEVER-WiFi-2.4G-RJ45-D

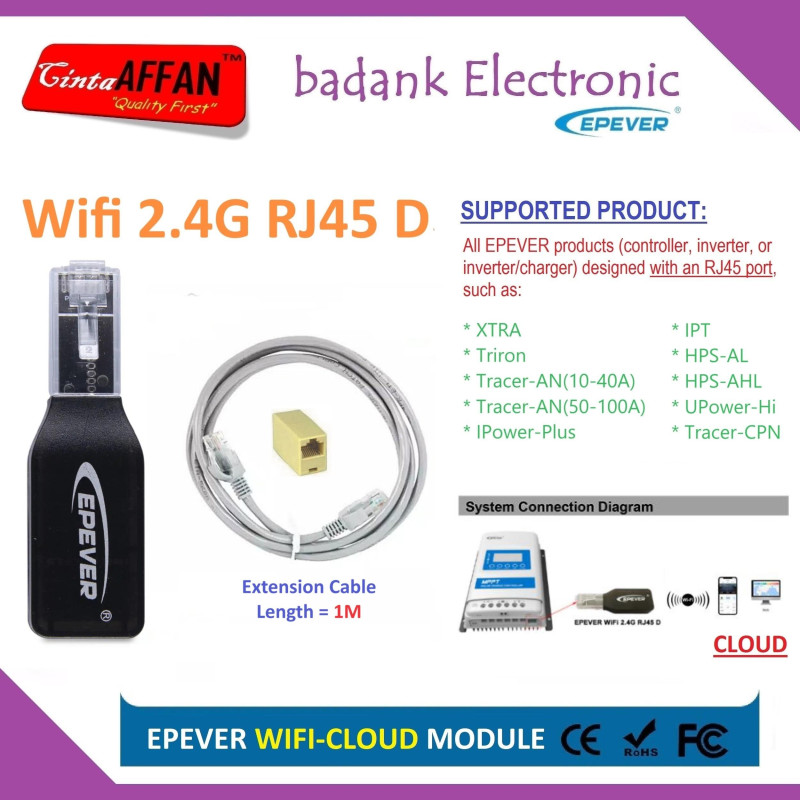

WiFi Transmission Terminal, Wifi module with communication cable work with all the EPEVER controller and inverter with RJ45 port.

Package List :
1. EPEVER-WiFi-2.4G-RJ45-D (1pcs)
2. Extension RJ45 Cable (L=1M) with connector
(this is for Tracer AN (50-100A) series and other product that need RJ45 port extension)

=================

OVERVIEW :
The EPEVER WiFi 2.4G RJ45 D WiFi adapter is mainly used for real-time transmission of various power generation data from EPEVER controllers, inverters, hybrid inverter chargers, etc. to the EPEVER cloud server. It supports wireless monitoring and parameter setting of on-site devices via cloud servers, mobile apps, or large screens.

FEATURES:
-- 2.4G WiFi Networking Communication
-- Works with Controllers, Inverters, and Inverter Charger with RJ45 Interface
-- Plug-and-Play with Easy Setup
-- Communication Port Powered Directly, No External Power Required
-- Communication Distance: Up to 20 Meters
-- Support Two Working Modes: Offline Monitoring; WIFI Data Upload to the Cloud
-- Products suitable for Solar Guardian app：
* XTRA
* Triron
* Tracer-AN(10-40A)
* Tracer-AN(50-100A)
* IPower-Plus
* IPT
* HPS-AL
* HPS-AHL
* UPower-Hi
* Tracer-CPN

SPECIFICATION:
-- Working voltage : 5V± 0.5V(Powered by RS485 com. port)
-- Power consumption : Peak emission: 150mA; Idle: 310uA
-- Enclosure : IP54 -- Communication method : RS485
-- Communication parameters : 115200Bps, 8N1
-- Communication protocol : EPEVER communication protocol V1.1
-- Interface standard : EPEVER general communication standardV1-1.0
-- Working frequency : 2.4 ~ 2.4835GHz
-- Environment temperature : -40℃~ 85℃
-- Dimension : 63* 19* 10mm -- Net weight : 7.7g

=================
