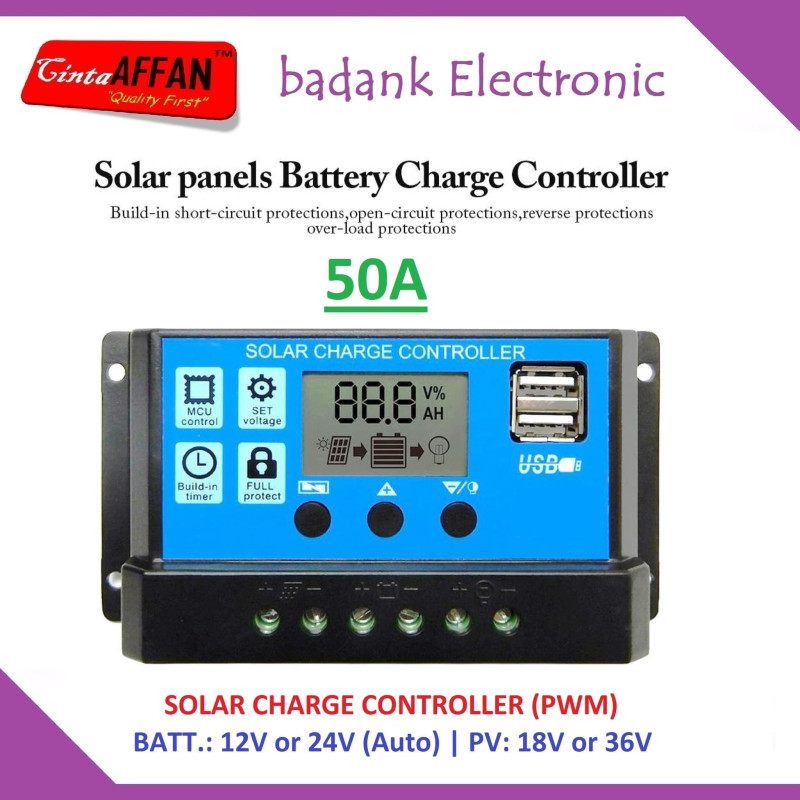

50A PWM Solar Charge Controller 12V 24V 50A with LCD and USB

Name: 50A PWM Solar Charge Controller 12V 24V 50A with LCD and USB
Brand: badank Electronic
SKU: 618247123
Price: 93120 IDR
Availability: InStock

Rp96,000

Rp93,120 Save 3%

Tax excluded

Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

Description
Product Details

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

Solar Charge Controller PWM auto selection 24V 12V rating 50A dengan LCD Display.

Dapat mengenali secara auto jenis battery Lead acid ataukah Gel battery.

Untuk battery 12V: max PV voltage 25V, max charging power nya 650W
Untuk battery 24V: max PV voltage 50V, max charging power nya 1300W

MODEL: W666C

FEATURES:
1. Build-in industrial micro controller.
2. One-key setting,digital display,auto memory function.
3. Fully 4-stage PWM charge management.
4. Build-in short-circuit protections,open-circuit protections,reverse protections,over-load protections
5. Dual mosfet Reverse current protections, low heat productions.

SPECIFICATIONS:
Battery Voltage: 12V 24V Auto
Charging Current: 50A
Discharging Current: 50A
Max Solar input: 46V (for 24V battery), 23V (for 12V battery)
Equalization:
* 12V system -- 14.4V (Sealed) 14.2V (Gel) 14.6V (Flood)
* 24V system -- 28.8V (Sealed) 28.4V (Gel) 29.2V (Flood)
Float charge:
* 12V system -- 13.7V (default, adjustable)
* 24V system -- 27.4V (default, adjustable)
Discharge stop:
* 12V system -- 10.7V (default, adjustable)
* 24V system -- 21.4V (default, adjustable)
Discharge reconnect:
* 12V system -- 13.0V
* 24V system -- 26.0V
USB output: 5V/2.5A (Max)
Self-consume: 10mA
Operating temperature: -35C~+60C
