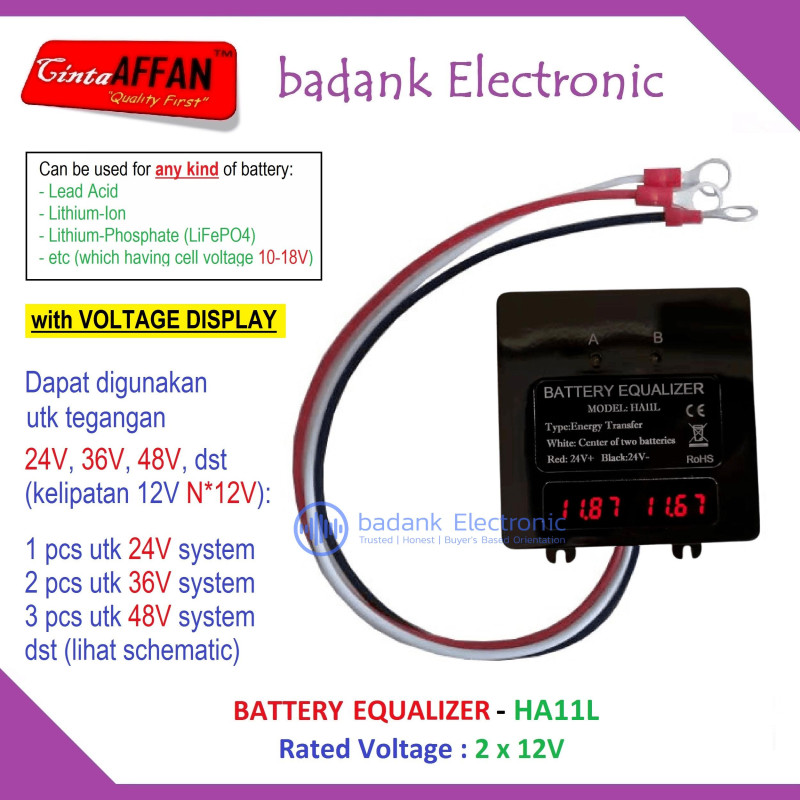

HA11L Battery Equalizer WITH VOLTAGE DISPLAY Lead Acid VRLA 2x12V SERI

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

DAPAT DIGUNAKAN UNTUK SEMUA JENIS BATTERY
(dengan cell-voltage lt; 18V)

HA11L battery equalizer with VOLTAGE DISPLAY for 2 X 12V

INSTALLATION
Connect it as the following order:
1. Red cable connect positive (+) pole. Black cable connect negative (-) pole
2. Connect the batteries as the pictures.
3. You can connect all (+) pole firstly, and then (-) pole to avoid short circuits.
4. AVOID SHORT-CIRCUIT, it can broke the balancer.

Battery equalizer HA11L is used for the lead-acid batteries which are connected in series to keep battery voltage balance. When two or more in-series connected batteries are in charging/discharging/free status. The battery voltages maybe become different. One battery voltage is high and one is low.
The battery equalizer will equalize/balance the battery voltage when it detect there are 20mV between two batteries. It will shunt current from one battery (the higher voltage one) to the other battery (the lower voltage one). Until their battery voltage almost becomes same. This will improve batterys performance and extent batterys life time.

Battery equalizer can be used for 24V, 36V, 48V and any other N*12V battery system.
1 piece for 24V system;
2 pieces for 36V system;
3 pieces for 48V system;

TECHNICAL DATA
Battery nominal voltage : 2*12V
Battery max voltage : 18V on each cell
Balance current : 0-5A (balance current based on batteries voltage difference)
Quiescent current : lt;3mA
Size : 70*70*27 mm
Protection : Reverse polarity protection
Low voltage disconnect : 10V
