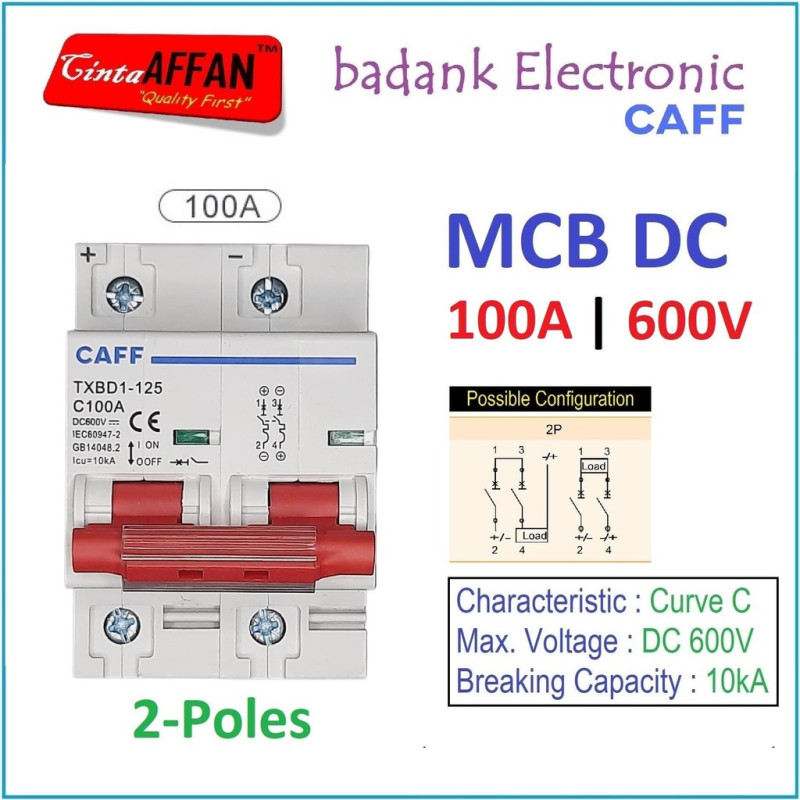

CAFF MCB DC C100 100A 600V 2P Circuit Breaker Solar PV Panel Surya

Name: CAFF MCB DC C100 100A 600V 2P Circuit Breaker Solar PV Panel Surya
Brand: badank Electronic
SKU: 5700291883
Price: 159080 IDR
Availability: InStock

Rp164,000

Rp159,080 Save 3%

Tax excluded

Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

Description
Product Details

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

MCB DC 2P 600V
RATED CURRENT : 100A

APLIKASI :
--- Panel Surya, Solar Controller, Inverter
--- Battery
--- Electric Vehicle (Bike, Motor, Car)
--- DC Power Supply
--- Sumber/arus listrik DC lainnya

SPECIFICATIONS:
--- Brand : CAFF
--- Model : TXBD1-125
--- Max Voltage: DC 600V
--- Rating Current : 100A
--- Trip Characteristic Curve: C
--- Rated Breaking Capacity (Icu) : 10kA
--- Number of Pole : 2P
--- Standard : IEC60898 (80~125A)
--- Contact Position Indication: ON (RED) / OFF (GREEN)
--- Working ambient temperature: -10 ~ +40
--- Enclosed protective class: IP20
--- Electrical life: Not less than 8000 times
--- Mechanical life: Not less than 20000 times
--- Connecting Wire Size : Max 35mm2
