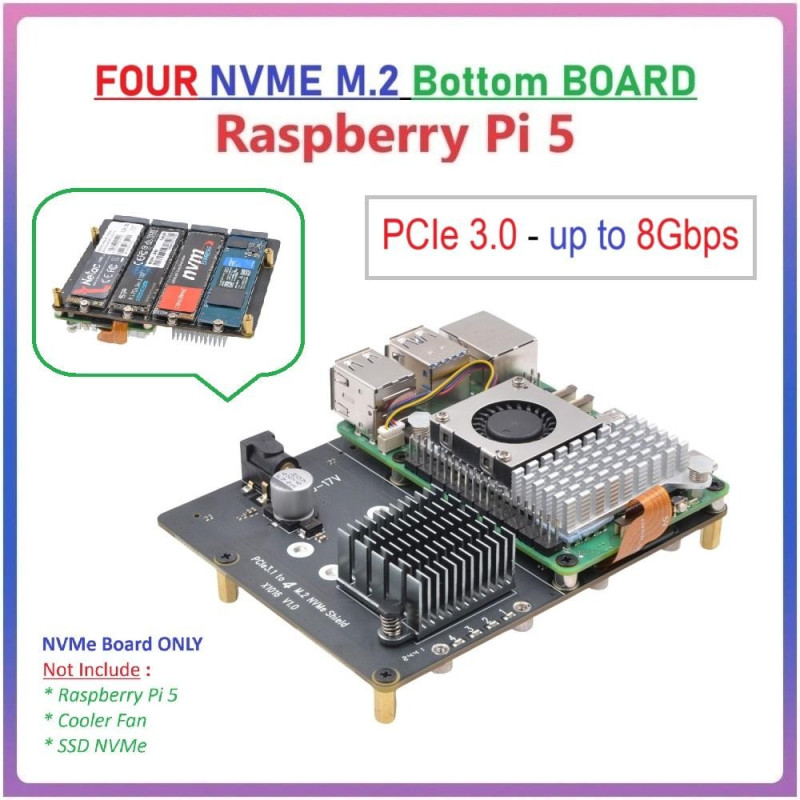

SUPTRONICS X1016 PCIe 3.0 to Quad M.2 NVMe 4 SSD Bottom Shield for Raspberry Pi 5

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

QUAD / FOUR SSD NVME M.2 BOARD / SHIELD / HAT for Raspberry Pi 5
BOTTOM SHIELD

PCIe 3.0 - speed up to 8.0 Gbps

Compatible for :
-- NVME M.2 2230
-- NVME M.2 2242
-- NVME M.2 2260
-- NVME M.2 2280

Order SSD NVME 2280 (sudah terinstall OS Raspberry) :
NVME 128GB :
NVME 256GB :
NVME 512GB :
NVME 1TB :
NVME 2TB :

Order MATCHING Metal Case :

Order Raspberry Pi 5 :
RAM 2GB :
RAM 4GB :
RAM 8GB :
RAM 16GB :

Order KIT NVME :
RPi5 (8GB) NVME 1TB :
RPi5 (8GB) NVME 2TB :

OVERVIEW :
The X1016 is a PCIe 3.0 to four-slot M.2 NVMe SSD shield, offering a high-capacity, high-speed storage solution for your Raspberry Pi 5. It enables seamless expansion of storage capabilities, making it ideal for demanding applications that require both performance and reliability. Its sleek and compact design allows for the easy attachment of four full-size M.2 2280 SSDs. With the ASM2806 PCIe 3.1 Packet Switch, you can achieve data transfer rates of up to 8Gbps, enabling the rapid transfer of large amounts of data.

FEATURES :
- Optimal storage solution designed specifically for Raspberry Pi 5 - PCIe3.0 to 4 M.2 NVMe Shield
- Supports a total of 16TB storage capacity (4TB x4) with M.2 NVMe solid-state drives
- Accommodates various M.2 NVMe SSD form factors, including 2280, 2242 and 2230
- Features an integrated high-performance PCIe3.0 packet switch
- Provides speedy data transfer with PCIe 3.0 8Gbps and super-fast boot
- LED indicators in blue display power and drive status
- Supports operating input range of 9V to 17V
- Equipped with high-efficiency DC/DC step-down converter, delivering a maximum of 12A to power your SSDs
- Supports powering via DC power jack, ensuring sufficient power supply without any worries
- Designed to be attached on bottom, allows using your favorite HATs alongside it
- Compatible with the HAT+ STANDBY power state, automatically turning off when the Pi 5 shuts down.
- Compatible with the official active cooler without affecting cooling performance

SPECIFICATIONS :
Power supply : 9-17Vdc +/-5% ≥3A power via DC power jack, 12V 5A recommended
Ports & Connectors :
--- DC power jack: 5.5x2.1mm, polarity: center positive (+)
--- PCIe connector x1 - 16-pin pitch0.5mm
--- SSD connectors x4 - M.2 KEY-M 67P
PCIe FFC cable length : 37mm
PCB Size : 109mm x 87.2mm

PACKING LIST :
- X1016 V1.1 M.2 NVMe 4 SSD shield x1
- PCIe FFC 37mm x2
- Screw pack x1
