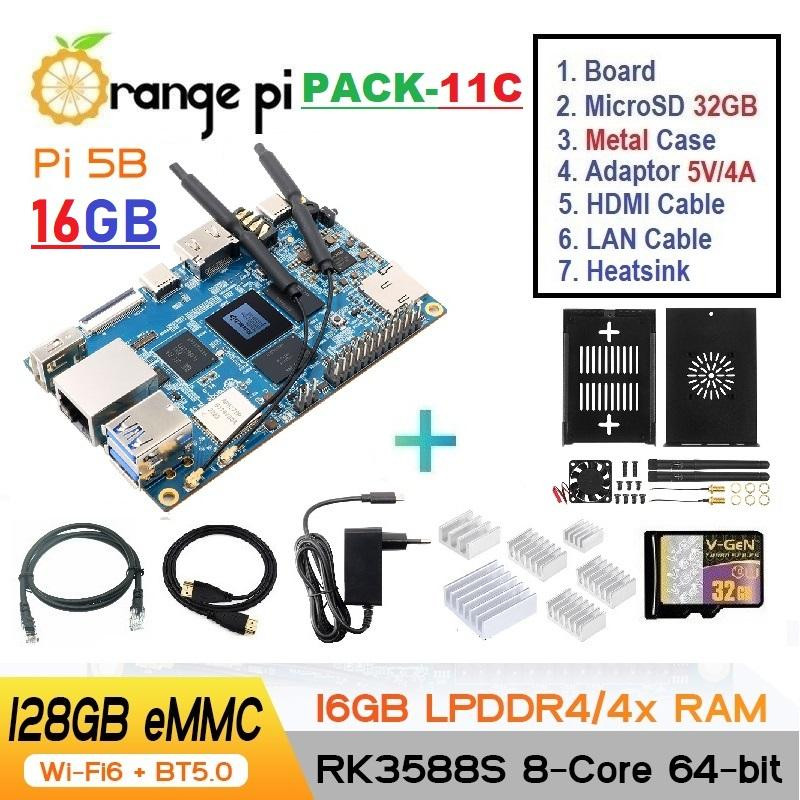

PACK-11C Orange Pi 5B (16GB RAM with 128GB EMMC) - Complete SET

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

PACK-11C :
1. ORANGE PI 5B (16GB RAM with 128GB EMMC)
2. METAL CASE with Cooling Fan and Antenna (2pcs)
3. MicroSD 32GB (Real Capacity) - tanpa OS
4. Adaptor 5V/4A DC Type-C (Real Capacity)
5. HDMI Cable L=1M
6. LAN Cable L=1M
7. Heatsink 6pcs

Note: item no 4, 5, 6 and 7 (model/warna sesuai ketersediaan stock)

SUPPORTED OS :
- Orange Pi OS (Droid)
- Armbian
- Ubuntu
- Debian
- Android

---

SPEC:
SoC : Rockchip RK3588S (8nm LP process)
CPU :
--- 8-core 64-bit processor
--- Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU :
--- Arm Mali-G610 MP4 “Odin” GPU
--- Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
--- 3D graphics engine and 2D graphics engine
NPU : Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
PMU : RK806-1 RAM : 16GB LPDDR4/4x）
Memory :
--- 128GB eMMC
--- MicroSD (TF) Card Slot
USB :
--- USB3.0 × 1
--- USB2.0 × 2
--- Type-C (USB3.1) ×1
Video Output :
--- HDMI2.1, up to 8K @60Hz
--- DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C
--- 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Camera :
--- MIPI CSI 4Lane
--- 2 * MIPI D-PHY RX 4Lane
Audio :
--- CODEC: ES8388
--- 3.5mm headphone jack audio input/output
--- Input: Onboard MIC
--- HDMI 2.1 eARC
Ethernet : 10/100/1000Mbps Ethernet Expansion Port : For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.
Wi-Fi, BT module : On-board Wi-Fi6+BT 5.0 module, Wi-Fi6 interface: PCIe, BT interface: PCM+UART
Button :
--- 1×MaskROM key
--- 1×Recovery key
--- 1×On/Off key
Power Source : Support Type-C power supply, 5V @ 4A
LED :
--- Power indicator: red
--- Status indicator: green
Debugging : 3 Pin debug serial port (UART)

---
