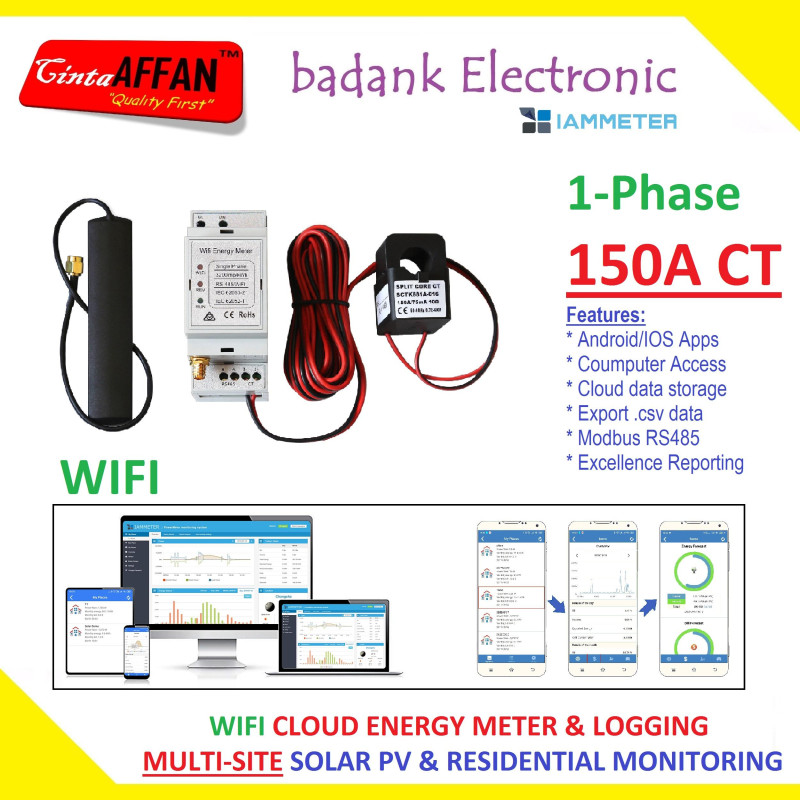

IAMMETER CLOUD 1-Phase WIFI Bidirectional Energy Meter CT 150A

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

ENERGY METER CLOUD MONITORING (1-SENSOR CT 150A)

INTERFACE :
---via ANDROID/IOS, APPS : IAMMETER
---via Laptop/computer (web browser)

WEM3080 (1-sensor CT 150A) :
--- Aplikasi untuk 1-titik pengukuran listrik 1-fasa 220V (2-wire / L, N)

Harga SUDAH TERMASUK cloud storage fee lifetime period.

KEY FEATURES
---Real-time energy monitoring via your Wi-Fi network
---Simply one-key Wi-Fi setup to connect to your Wi-Fi network
---Enterprise-class performance, suitable for domestic, commercial, industrial use and solar system
---Cloud service and Mobile app is available
---Support local monitoring via LAN or uploading the data to your specified server
---2-pole DIN-rail mounting fits neatly in the meter box

GENERAL SPECIFICATION
Standard package :
---1. Wi-Fi Energy Meter (WEM3080) x 1
---2. Split-core Current Transformer 150A x 1
---3. 2.4G Wi-Fi Antenna x 1
Phase : Single phase
Power Supply : Built-in universal power supply
Communication : Built-in Wi-Fi
Antenna : External 2.4G antenna with SMA male
Reporting interval : 1-5 minutes interval, typically 1 minute
Report contents : Active Energy (Forward and Reverse), Active Power, Voltage, Current, Frequency
Configuration :
---1. Wi-Fi access point and webpage for setting SSID and password
---2. Mobile App for setting SSID and password
Monitoring Scenarios :
---1. Monitor on Iammeter Cloud
---2. Monitor locally on your PC via WLAN (Http get interface)
---3. Integrate with third party server, such as your own server, PVoutput and HomeAssistant (TCP/SSL interface)

ELECTRICAL CHARACTERISTIC
Input Voltage : 80265 V AC
CT Ratings : 150A
Measurement Accuracy :
---1. Voltage: 1.0%
---2. Current: 1.0%
---3. Active Power: 1.0%
---4. Active Energy: Class 1 as defined by IEC62053-21
Typical power consumption : 2W(220VAC input)
