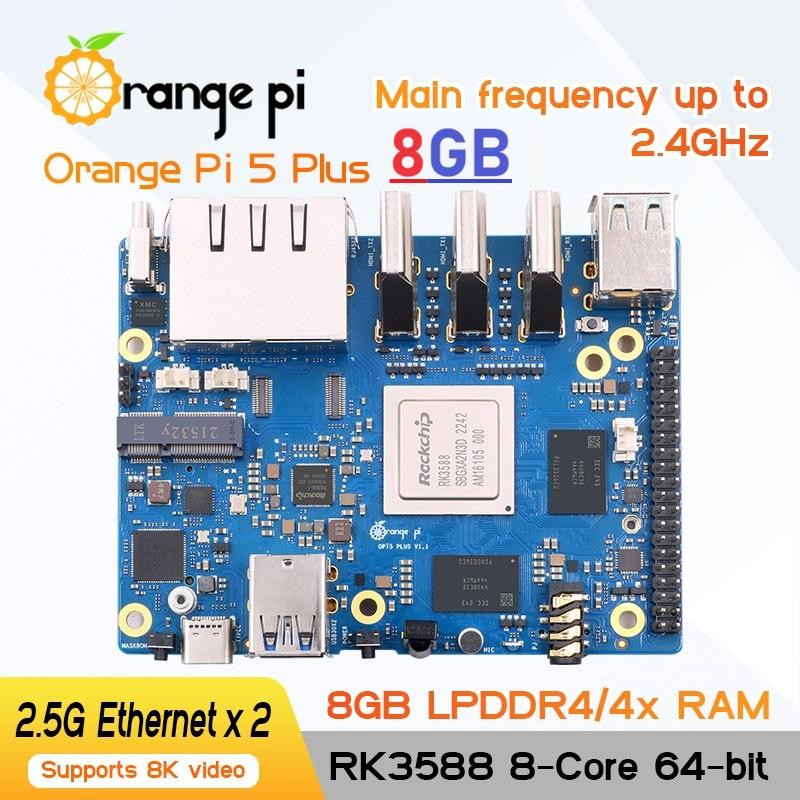

Orange Pi 5 Plus - 8GB RAM

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

Orange Pi 5 Plus, 8GB LPDDR RAM

OFFICIAL OS :
- OpenWRT
- Orange Pi OS (Arch)
- Orange Pi OS (Droid)
- Ubuntu
- Debian
- Android

THIRD PARTY OS :
- BredOS
- Windows on Arm
- openFyde
- DietPi
- kali
- rocky-linux
- CentOS

Order Case :
https://www.tokopedia.com/badank/metal-case-orange-pi-5-plus-with-cooling-fan

Order Adaptor :
https://www.tokopedia.com/badank/orange-pi-5v-4a-type-c-power-adaptor-20w-real-4a

---

SPEC:

SoC : Rockchip RK3588 (8nm LP process)
CPU :
--- 8-core 64-bit processor
--- 4 x Cortex-A76(2.4GHz), 4 x Cortex-A55(1.8GHz) and separate NEON co-processors
GPU :
--- Arm Mali-G610
--- Built-in 3D GPU
--- Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
NPU : Embedded NPU supports INT4/INT8/INT16/FP16 mixed operation, with up to 6Tops computing power
PMU : RK806-1
RAM : 8GB（LPDDR4/4x）
Memory :
--- QSPI Nor FLASH: 16MB/32MB
--- MicroSD card slot: up to 128GB
--- eMMC socket: 16GB/32GB/64GB/128GB/256GB eMMC module can be attached
--- M.2 2280 slot for NVMe SSDs (PCIe 3.0 x4) up to 2,000 MB/s
USB :
--- USB3.0 × 2
--- USB2.0 × 2
--- Type-C ×1
Video :
--- 2x HDMI 2.1 out up to 8k@60FPS
--- 1x Type-C with DP TX 1.4A，up to 8K@30FPS
--- 1x HDMI in with up to 4K@60FPS
--- 1 x MIPI DSI TX 4 Lane，up to 4K @60Hz
TP interface : 1x 6Pin FPC socket
Camera : 1XMIPI CSI 4 Lane
Audio : CODEC:ES8388
--- 1xAudio 3.5mm jack with mic
--- 1xMIC In
--- 1xHDMI 2.1 eARC
--- 1xSPK
Ethernet : 2xPCIe 2.5G LAN（RTL8125BG)
Expansion Port : 40Pin dual row pins with the following multiplexing functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO
PCIe M.2 M-KEY Socket : M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSD
PCIe M.2 E-KEY Socket : M.2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB2.0,2230 Wi-Fi6 /BT supported
Power Source : Support Type-C power supply, 5V@4A

---
