Camera Module 8MP for NVIDIA Jetson NANO Developer Kit
Rp373,000
Rp361,810
Save 3%
Tax excluded
SKU: 2587829615
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

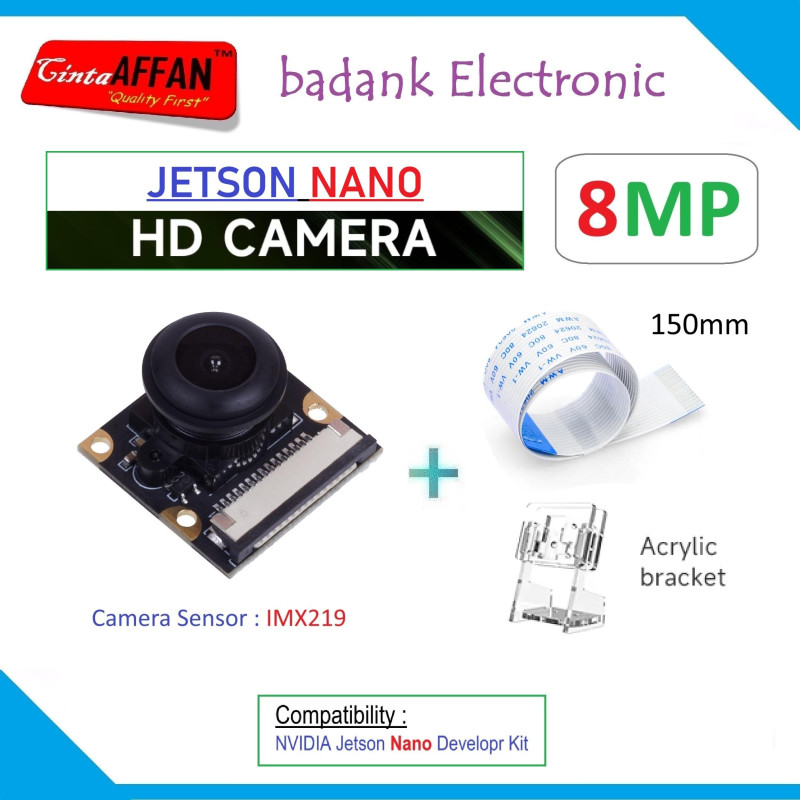

Camera Module 8MP
(Field Of View / FOV 130 Degree)
Compatible for :
- NVIDIA Jetson NANO Developer Kit
- NVIDIA Jetson XAVIER NX Developer Kit
Note : NOT COMPATIBLE FOR "JETSON ORIN NANO / NX"
Part-list :
--Camera sensor IMX219
--Camera Cable (Panjang 15cm)
--Acrylic Bracket
PRODUK SESUAI GAMBAR
==
Specification:
Megapixels: 8 Megapixels
Photosensitive chip: Sony IMX219
Assembly Technique: SMT (ROSH)
Resolution: 3280 × 2464
Pixel Size: 1.12µm × 1.12µm
CMOS Size: 1/4 inch
Aperture (F): 2
Focus: fixed
Focal Length: 2.96mm
Lens Construction: 4P
Diagonal Field of View (FOV): 130 degrees
Distortion:
EFL: 2.93mm
BFL (Optical): 1.16mm
Maximum Image Transfer Rate: 30 fps for QSXGA
Output Formats: 8/10bit RGB RAW output
S/N Ratio: 39db
Dynamic Range: 69db
Sensitivity: 600mV/Lux-sec
Relative Illumination (Sensor): 70%
IR Filter: 650±10nm
Object Distance: 30CM
Interface: 15p-1.0 mipi
Power Supply: 3.3V (pin15)
Operating Temperature: -20°C to 70°C
Temperature (Stable Image): 0°C to 50°C
Lens Size: 6.5mm × 6.5mm
Module Size: 25mm × 24mm × 5.3±0.2mm
2587829615
20 g
