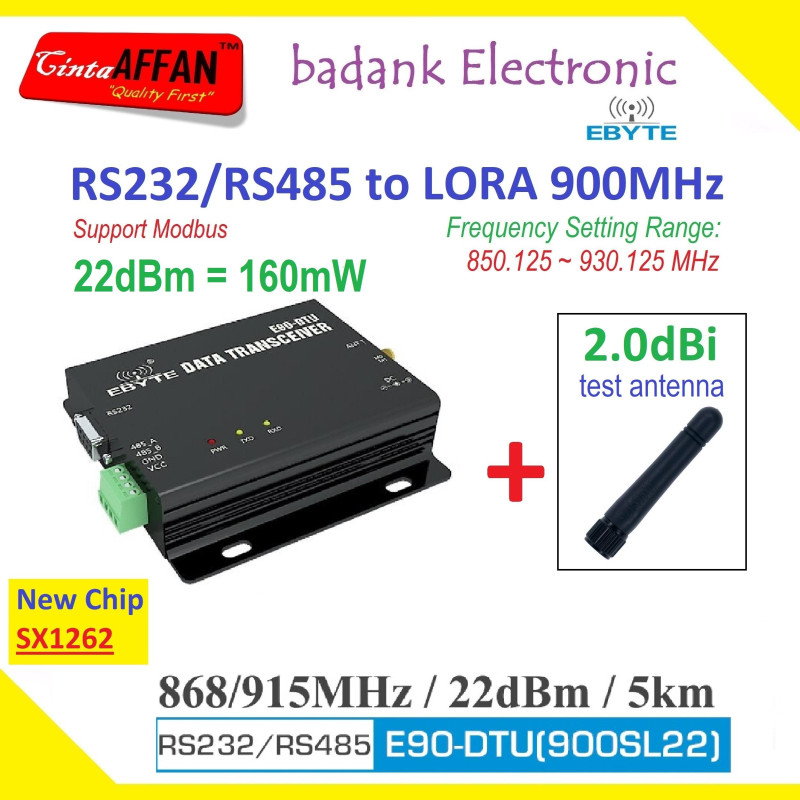

EBYTE E90-DTU (900SL22) MODBUS RS232/RS485 to LORA 900MHz with Antenna
Rp918,000
Rp890,460
Save 3%
Tax excluded
SKU: 2379268816
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################
EBYTE E90-DTU (900SL22)
Support MODBUS RS232/RS485 to LORA 900MHz Converter dengan TEST Antenna 2.0dBi
Note:
Legal Frequency LORA untuk wilayah Indonesia adalah pada range 920 - 922MHz
Adaptor untuk produk ini dapat diorder pada link berikut:
12V : http://www.tokopedia.com/badank/caff-adaptor-usb-booster-5v-12v-dc-jack-5-5x2-1mm-with-switch-button
24V : http://www.tokopedia.com/badank/caff-adaptor-usb-booster-5v-24v-dc-jack-5-5x2-1mm-with-switch-button
User manual, email to : badank(--at--)badank(--dot--)com
=====
FEATURES:
LoRa 22dBm SX1262 Serial Wireless Modem Transparent Transmission Module RF
PARAMETERS:
Working frequency : 850.125~930.125 MHz (Default: 868.125MHz)
Transmitting power : 22 dBm (About 160mW)
Air data rate : 0.3k~62.5kbps (Default: 2.4kbps)
Test distance : 5000 meter (In open and clear air, antenna gain 5dBi, at height of 2.5 m, air data rate 2.4 kbps)
HARDWARE PARAMETERS:
Size : 82 * 62 * 25 mm
Antenna type : SMA-K
Communication interface : RS232 / RS485 (Standard DB9 Hole / 3.81 connecting terminal)
Channel numbers : 81 (Half duplex)
Buffer : 1000 bytes (Can be sub-packed to 32/64/128/240 byte each time via command)
ELECTRONIC PARAMETERS:
Power supply : 8V - 28V (It is recommended to use 12V or 24V)
Transmitting current : (22dBm / 160mW) Stand-by current : 10mA
Operating temperature : -40 to +85 Operating humidity : 10 to 90%
Storage temperature : -40 to +125
=====
