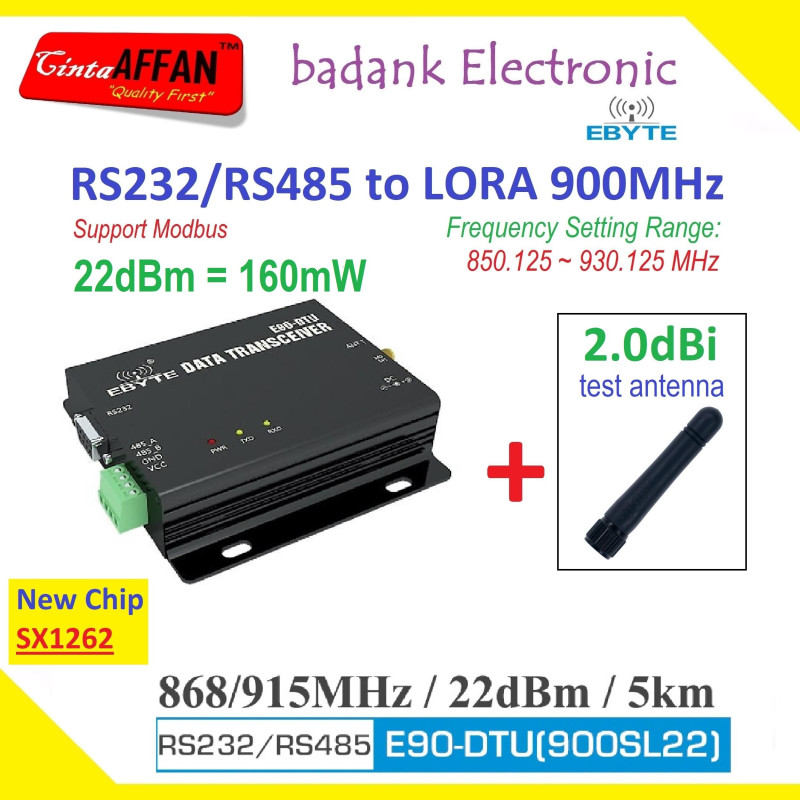

EBYTE E90-DTU (900SL22) MODBUS RS232/RS485 to LORA 900MHz with Antenna

##################################

READY STOCK, SILAHKAN LANGSUNG ORDER

##################################

EBYTE E90-DTU (900SL22)

Support MODBUS RS232/RS485 to LORA 900MHz Converter dengan TEST Antenna 2.0dBi

Note:

Legal Frequency LORA untuk wilayah Indonesia adalah pada range 920 - 922MHz

Adaptor untuk produk ini dapat diorder pada link berikut:

12V : http://www.tokopedia.com/badank/caff-adaptor-usb-booster-5v-12v-dc-jack-5-5x2-1mm-with-switch-button

24V : http://www.tokopedia.com/badank/caff-adaptor-usb-booster-5v-24v-dc-jack-5-5x2-1mm-with-switch-button

User manual, email to : badank(--at--)badank(--dot--)com

FEATURES:

LoRa 22dBm SX1262 Serial Wireless Modem Transparent Transmission Module RF

PARAMETERS:

Working frequency : 850.125~930.125 MHz (Default: 868.125MHz)

Transmitting power : 22 dBm (About 160mW)

Air data rate : 0.3k~62.5kbps (Default: 2.4kbps)

Test distance : 5000 meter (In open and clear air, antenna gain 5dBi, at height of 2.5 m, air data rate 2.4 kbps)

HARDWARE PARAMETERS:

Size : 82 * 62 * 25 mm

Antenna type : SMA-K

Communication interface : RS232 / RS485 (Standard DB9 Hole / 3.81 connecting terminal)

Channel numbers : 81 (Half duplex)

Buffer : 1000 bytes (Can be sub-packed to 32/64/128/240 byte each time via command)

ELECTRONIC PARAMETERS:

Power supply : 8V - 28V (It is recommended to use 12V or 24V)

Transmitting current : (22dBm / 160mW) Stand-by current : 10mA

Operating temperature : -40 to +85 Operating humidity : 10 to 90%

Storage temperature : -40 to +125
