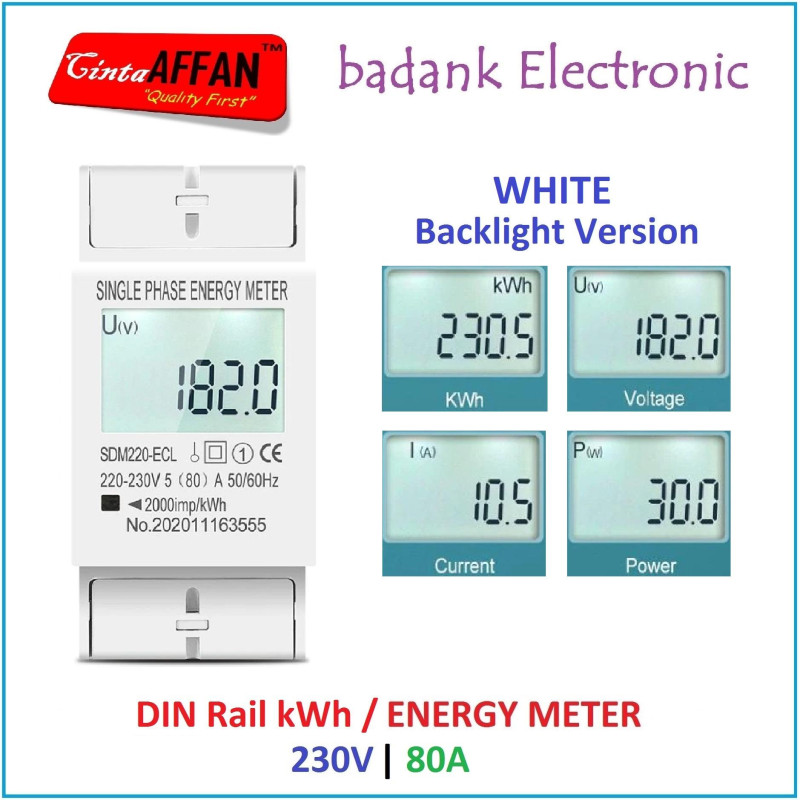

SDM220-ECL Backlight Energy Meter 80A 220V kWh Electric Consumption
Rp152,000
Rp147,440
Save 3%
Tax excluded
SKU: 1585658259
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
Energy / kWh meter ini cocok untuk:
-PLTS rumah, kantor untuk mengetahui kWh listrik yg di produksi oleh Inverter
-Untuk mengetahui konsumsi peralatan listrik
-Keperluan lainnya
Pengukuran:
- kWh
- Voltage
- Arus
- Power
PERHATIAN:
- Jangan memasang power meter ini untuk mengukur output inverter jenis MODIFIED SINE WAVE.
- Inverter Modified Sine Wave memiliki kualitas listrik yg buruk (tegangan bentuk KOTAK, bukan sinus murni), yang dapat mengakibatkan kerusakan pada peralatan berbasis elektronika, TERMASUK PADA POWER METER jenis ini.
Technical Specification :
Model : SDM220-ECL (Backlight)
Standard : IEC 62053 -21 (IEC61036)
Nominal Voltage : 230V 50HZ
Basic Current (Ib2) : 5A (sensor current)
Maximum Current : 80A (measurement current)
Minimum Current : 0.02A (measurement current)
Consumption : 1W/10VA
Accuracy Class : 1
Display : LCD 5+1 Digits
Interface : Open Collector Output (SO) 5-27V 27mA
Impulses : 2000imp/kWh (0.5Wh/Imp)
1585658259
200 g
9 × 7 × 4 cm
