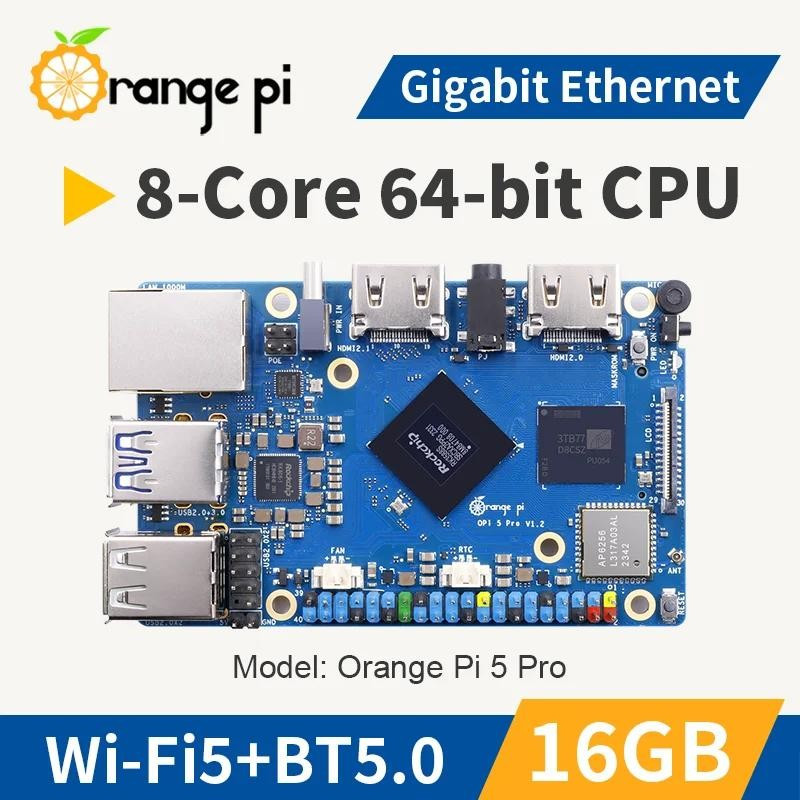

Orange Pi 5 PRO - 16GB RAM

Name: Orange Pi 5 PRO - 16GB RAM
Brand: badank Electronic
SKU: 12652808349
Price: 5373800 IDR
Availability: InStock

Rp5,540,000

Rp5,373,800 Save 3%

Tax excluded

Security policy

We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.

Delivery policy

Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.

Return policy

If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.

Description
Product Details

############################
READY STOCK, SILAHKAN LANGSUNG ORDER
############################

Orange Pi 5 PRO, RAM 16GB LPDDR5

SUPPORTED OS :
- Orange Pi OS (OH)
- OpenWRT
- Orange Pi OS (Arch)
- Orange Pi OS (Droid)
- Ubuntu
- Debian
- Android

HARDWARE SPEC:

SOC :
--- Master Chip : Rockchip RK3588S (8nm LP process)
--- CPU :
• 8-core 64-bit processor
•big.LITTLE Architecture: 4-core Cortex-A76 and 4-core Cortex-A55, big core cluster is 2.4GHz, and little core cluster is 1.8GHz frequency.
--- GPU :
• Arm Mali-G610
• Built-in 3D GPU
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
--- NPU : Embedded NPU supports INT4/INT8/INT16 mixed operation, with up to 6TOPS computing power
PMU : RK806-1
RAM : LPDDR5 496PIN:16GB
Memory :
--- • eMMC socket: supports eMMC module (optional)
--- • SPI Flash (default empty)
Note:either eMMC socket or on-board SPI Flash is preferred.
--- • MicroSD (TF) slot
--- • M.2 M-KEY slot: NVMe SSD or SATA SSD
USB :
--- USB3.1 Gen1 * 1;USB2.0 *1;
--- USB HUB:USB2.0 *2(TYPE A)+UAB2.0*2 row of pins
Video Output :
--- • HDMI2.1 up to 8K @60Hz
--- • HDMI2.0, up to 4K @60Hz
--- • MIPI DSI 4 Lane, up to 4K @60Hz
Camera : 2*MIPI 4 Lane
Audio :
--- CODEC: ES8388
--- • 3.5mm headphone jack audio input/output
--- • Input: onboard MIC
--- • HDMI 2.1 eARC
Ethernet : 10/100/1000Mbps Ethernet with PoE+ support (PoE+ HAT required)
Wi-Fi+BT Module : Onboard Wi-Fi5+BT 5.0/BLE module: AP6256
PCIe M.2 M-KEY Socket : M.2 M-Key slot supports access to NVMe SSD or SATA SSD
Expansion Port :
--- • Dual-row pin: 2.54mm 40Pin
--- • Supports DC 5V and 3.3V power outputs
--- • Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces
Button : 1* MaskROM, 1*RESET, 1 * POWER
Power Source : Supports Type-C power supply, 5V @ 5A
LED : RGB LED tri-color indicator
FAN : 5V 2PIN 1.25mm socket
RTC : 3V 2PIN 1.25mm socket
Debugging : Debug serial port UART included in 40PIN expansion port
