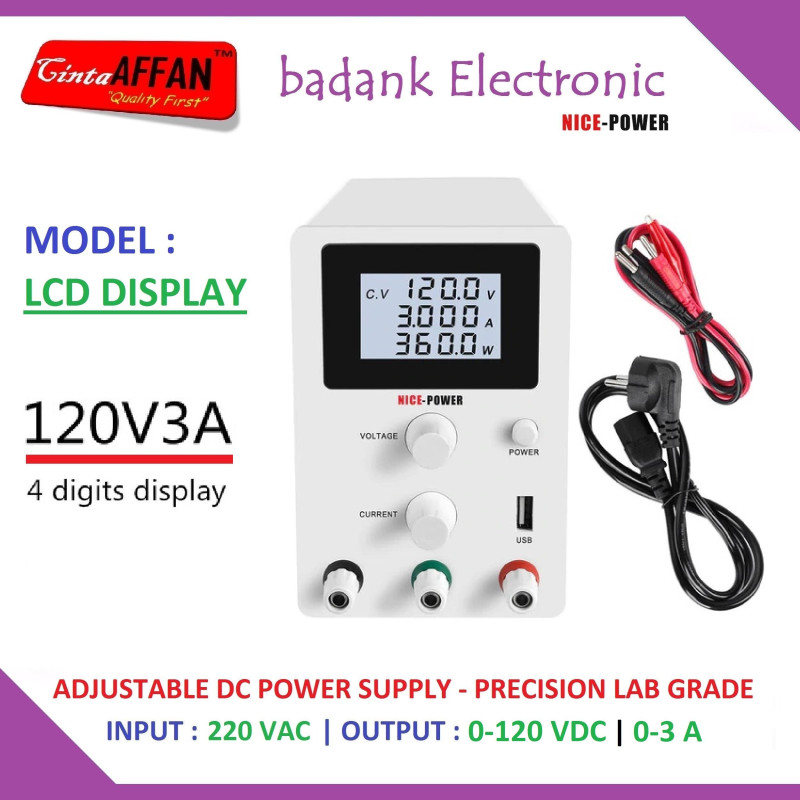

360W Adjustable DC Power Supply 0-120V 0-3A Switching Precision Lab

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

Brand : NICE POWER
Model : R-SPS1203D

LCD Display 4 DIGITS

Display : VOLTAGE, CURRENT, WATT

Max Power : 360W
Variable Tegangan : DC 0-120V
Variable Arus : DC 0-3A

---

INTRODUCTION:
The series of switching power supplies for measuring instrument have ruled out the inconvenience of big volume and heavyweight of a traditional power supply possess. The output voltage and current is controlled by two variable resistors with coarse and fine regulation for more handy and precise adjustment.

FEATURES:
1. With more extensive range of input voltage at 230V +/- 10% 50Hz
2. With high frequency operation can reduce the size of power transformer.
3. With small size, light weight and high density power.
4. Entire efficiency rate higher up to 70%.
5. Zero adjustment for the output of voltage and current.

SPECIFICATIONS:

Constant Voltage Operation :
(1) Output Voltage ranges from 0 to rating voltage with continuous adjustment .
(2) Voltage regulation line regulation 5mV. Load regulation 5mV.
(3) Recovery time 50 0mus (50 % Load change, minimum load 0. 5A).
(4) Ripple amp; Noise 5m Vrms, 10 0m Vp -p
(5) Temperature coefficient 10 0p pm /.

Constant Current Operation :
(1) Output current ranges from 0 to rating current with continuous adjustment.
(2) Current regulation line regulation 3mA. Load regulation 3mA.

PACKAGE LIST:
Power Supply X 1
The Load Line X 1
Operation Guide X 1

---
