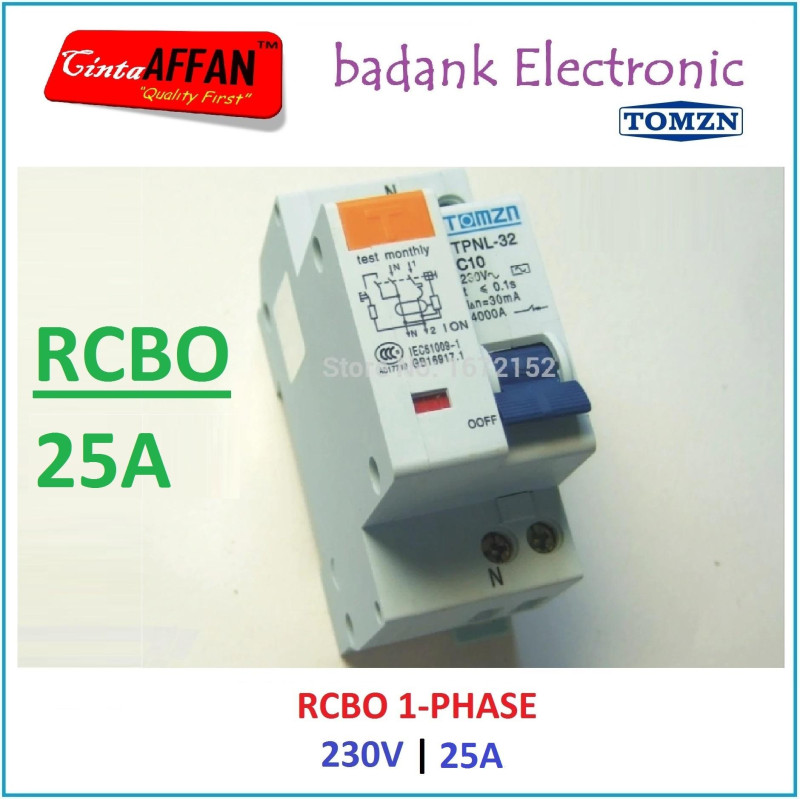

RCBO AC C25 25A 230V 1PN Residual Current Operated Circuit Breaker

################################## READY STOCK, SILAHKAN LANGSUNG ORDER ################################## RCBO AC C25, Residual Current Operated Circuit Breaker Pengaman Short-circuit, Leakage, Overload Note: Pemasangan kabel IN dan OUT tidak boleh terbalik karena akan merusak alat ini. DPNL leakage protective breaker (phase wire+neutral wire+leakage+overload voltage) protective breaker is used in the single phase residence circuit of AC 50HZ/60HZ, rated voltage 230V, used as electron shock protection. It can protect civil electron circuit from over load and short-circuit. This product has advantages of small volume, high breaking capacity zero, and live wires are cutted off at the same time, also protecting person from electric shock when the livewire connected opposite. This product conforms to IEC61009, GB6829, GB/16917 SPECIFICATIONS Number of Pole: 1P+N Rated Current: 25A Rated Residual Operating Current: 30 mA Rated Residual Non-Operating Current: 15 mA Rated Voltage: 230V Residual Current Off-time: lt; 0.1S Short Circuit Capacity: 4000A
