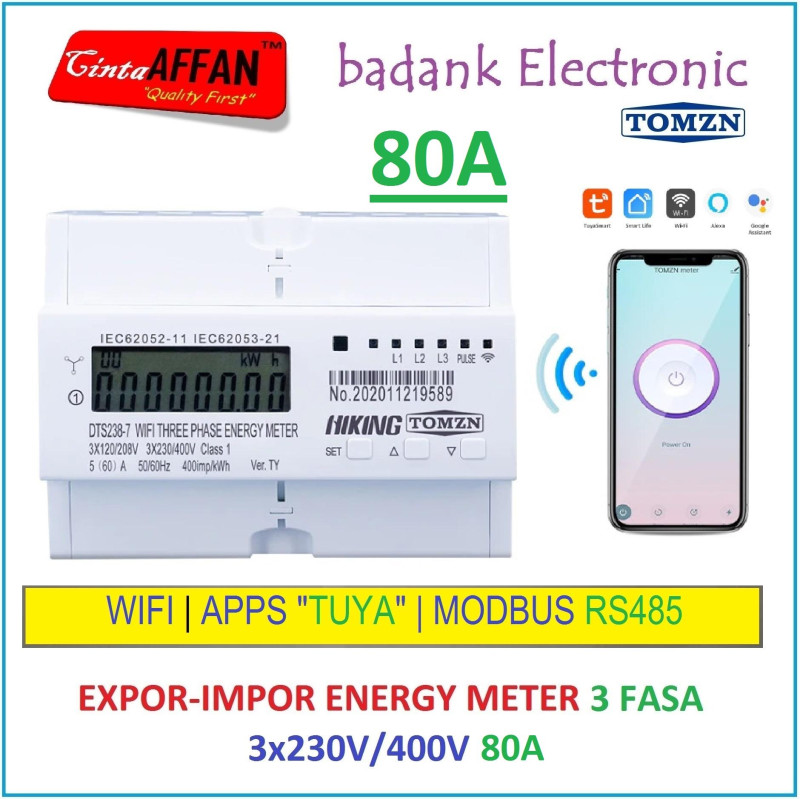

(80A) DTS238-7 Tuya 3-Phase Energy Meter EXIM 10(80)A MODBUS RS485

################################## READY STOCK, SILAHKAN LANGSUNG ORDER ################################## Energy / kWh meter ini cocok untuk: -PLTS rumah, kantor, ruko, pabrik untuk mengetahui kWh listrik yg di export ke PLN maupun yg di import dari PLN -Keperluan lainnya Dengan fitur komunikasi: - WIFI, Apps #34;TUYA #34; atau #34;SMARTLIFE #34; - MODBUS RS-485

---

---

============= GENERAL DESCRIPTION DTS238-7 WIFI type multi-function smart energy meter is designed to measure three phase four wire AC active energy and variable parameter. The meter have RS485 communication port and WIFI communication, it can use APP for remote reading and control on/off. All of its functions comply with the relative technical requirement for class 1 three phase watt hour meter in IEC62053-21 and its data communication rules obey the requirement of MODBUS-RTU and WIFI 802.11b/g/n.It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume . SPECIFICATION Meter type :DTS238-7 WIFI TY Rate frequency : 50 or 60 Hz Rated current : 10(80)A Rate voltage : 3x230/400V Normal voltage range : 90%Un110%Un Limits voltage range : 70%Un120%Un kWh Accuracy : Class 1 R.M.S accuracy : Class 0.5 Pulse constant : See meter RS485 port : MODBUS-RTU protocol, 12009600bps,None parity ,default 9600bps WIFI : 802.11b/g/n ,only support 2.4GHz network , not support 5GHz network

---

---
