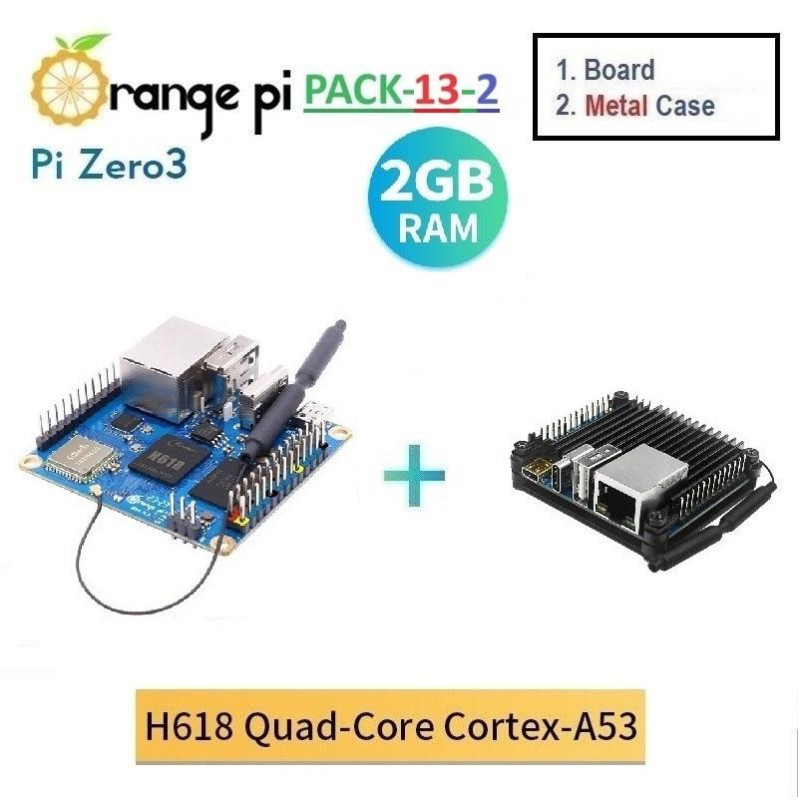

PACK-13-2 Orange Pi Zero 3 (2GB) CASE

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

PACK-13-2 :
1. ORANGE PI ZERO 3 (RAM 2GB)
2. METAL CASE (sekaligus berfungsi sebagai heatsink)

OFFICIAL OS:
- Orange Pi OS (Arch)
- Ubuntu
- Debian
- Android
(OS Image MUST be downloaded from Orange Pi website).

THIRD PARTY OS:
- Armbian
- kali
- raspberry-pi-os
(Please contact the appropriate third party directly if you have any questions about third party images).

Order Adaptor :
https://www.tokopedia.com/badank/adaptor-power-supply-5v-3a-kabel-usb-to-type-c-with-on-off-switch

---

SPECIFICATION

CPU : Allwinner H618 Quad-core Cortex-A53 processor 1.5GHz
GPU :
--Mali G31 MP2
--Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Memory : 1GB/1.5GB/2GB/4GB LPDDR4
On-board storage : 16MB SPI Flash
Power management : AXP313A
On-board WiFi + Bluetooth : Supports WiFi5 and Bluetooth 5.0
Network : 10M/100M/1000M Ethernet interface
Audio input/output : 13Pin expansion port supports 2-ch output 1-ch input
Video output:
--Micro HDMI up to 4K@60fps
--TV-Out:13Pin supports 1-ch TV CVBS output
UART : 3Pin Debug UART
USB : USB 2.0 * 3(two of which lead from the expansion board)
SD card interface : Micro SD card interface
Expansion interface :
--26Pin GPIO interface
--13Pin GPIO interface
Power input : 5V3A，Type-c connector
OS Support : Android 12 TV，Debian11，Debian12，Ubuntu22.04，Ubuntu20.04
PCB : 50mm*55mm

---
